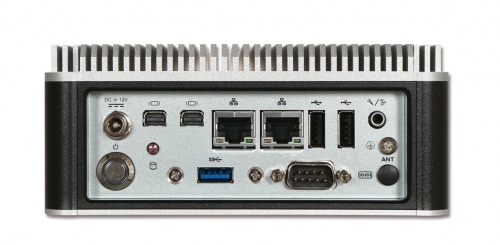

WEBS-21A0

Embedded Compact Fan-less System with Intel^® 5^th Gerenation ULT Core™ i Processor based NANO-ITX Board

특징

Fan-less and cable-less & small and exquisite design
Single 204-pin SODIMM supports DDR3L up to 8GB
Intel^® 5^th Gerenation ULT Core™ i Processor based platform
1x 2.5” SATA HDD/SSD, 1x mSATA
1x Half-size Mini-PCIe socket (USB+PCIe x1 signal)
1x Antenna hole for WiFi, 3G or GPS module to use
OP Vibration: 5Grms/10~500Hz
OP Shock: 50G, 11msec
IP40 Rating

설명

The WEBS-21A0 builds on Intel^® 5^th Gerenation ULT Core™ i Processor and takes advantages of Intel^® Core™ mobile technologies. that can support superior Dual-Core processing power and capability. Support two Gigabit Ethernet ports and one Half-Size Mini PCIe. The WEBS-21A0 is an ideal platform which with high performance for fan-less applications in harsh environment, such as POS, kiosk, d i g i tal signage, transportation and automation.

규격

Model	WEBS-21A0
M/B	NANO-6050
Form Factor	NANO-ITX
System
CPU	Intel^® 5^th Gerenation ULT Core™ i Processor
BIOS	AMI UEFI
Memory	DDR3L/8GB
Graphic Controller	Intel^® Gen 8 Graphics
Audio Codec	ALC892
Super I/O	EC ITE IT8528
Storage	1x 2.5” SATA HDD/SSD 1x mSATA
External I/O
Serial	1x RS-232/422/485
USB	2x USB2.0 1x USB3.0
Display	2x mini DP
Ethernet	Intel^® I218AT x 2
PS/2	N/A
Audio	Combo Jack Line-out, Mic-in
D I/O	N/A
Expansion	1x Half-size Mini-PCIe
PWR
System	DC 12V
Environment
OP Temp.	0°C ~ 50°C
Storage Temp.	-20°C ~ 85°C
Humidity	95%@40°C, non-condensing
Vibratoin	5Grms/10-500Hz
Shock	50G, 11 msec
Mechanical
Dimension(WxDxH)	150 x 150 x 62.6 mm
Weight	2 Kg
