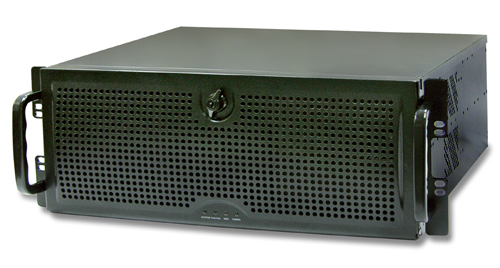

AREMO-4196

The Best Cost-Performance 19” 4U Height Intel® Desktop Mother Board Based Rack-mount Computer
AREMO-4196


AREMO-4196 and AREMO-4196-MX is 19” 4U Rack-mount chassis and designed for PICMG SBC/SHB and ATX form factor with stylish front panel design, up to 14-slot expansion for PICMG backplane. AREMO-4196 series can support PS/2 PSU, two USB interface on front panel and build with replaceable air filter. AREMO-4196 series is suitable in several vertical markets, like Factory and Server applications.


Features
  • Three 5.25” and one external 3.5” HDD drive bays for RAID 0, 1, 5 & CD-ROM
  • Two USB ports on the front panel
  • „Dual 12cm ball-bearing cooling fans for better ventilation
  • Two card retainer positions
  • PS/2 or redundant power supply installable
  • ATX M/B applicable (AREMO-4196-MX)
  • Easily detached and washable air filter
  • Equipped with fan control card to detect fan failure

Specifications
Construction Heavy-duty steel with aluminum front panel
Drive Bay Internal: 3x 5.25”, 1x 3.5”HDD
Internal: 2x 3.5”
Card Retainer Three locations for one card retainer
Air Filter Two replaceable air filter
Cooling Fan Two 12cm ball-bearing cooling fans
Indicator 1x Power On/Off, 1x HDD
Switch 1x Power On/Off, 1x System reset
Speaker One speaker
Connector T2x USB ports on the front panel
Standard Color Silver, Black
Dimension 482(W) x 481(D) x 177(H) mm; 19”(W) x 18.1”(D) x 7”(H)
Weight Net: 13.5 kg (29.8 lb); Gross: 14.5 kg (32 lb)
Backplane PBPE-13A8: 14-slot [PCIe (4), PCI (8), PCI-X (0)] active PICMG1.3 backplane
PBPE-13A4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] active PICMG1.3 backplane
PBPE-12A9: 14-slot [PCIe (2), PCI (9), PCI-X (0)] active PICMG1.3 backplane
PBPE-12P4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] PICMG 1.3 backplane
PBPE-11A3: 14-slot [PCIe (8), PCI (3), PCI-X (0)] active PICMG1.3 backplane
Maximum output 350W active PFC
Output Voltage & Current +5V@12A; +12V1@18A; +12V2@18A; +3.3V@18A; -12V@0.3A, +5Vsb@2.5A
Input Voltage 90V ~ 264V AC, full range
Input Frequency 50 ~ 60Hz
Input Current 8A@115V, 8A@230V
Efficiency > 80%
MTBF 100,000 hrs
EMI & Safety Approval UL, TUV, CE, FCC, CB, VCCI, 80PLUS
Temperature/Humidity Operating: 5°C ~ 50°C, 20% ~ 85%RH
Storage: -40°C ~ 70°C, 10% ~ 95%RH
Dimension (WxDxH) 150 x 140 x 86 mm; 5.9” x 5.5” x 3.4”
Operating Temperature 0°C ~ 55°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 5% ~ 95°%, non-condensing
Vibration 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration

Recommended Products

ATX M/B
ATX M/B
RUBY-9715VG2AR RUBY-9716VGAR
Micro ATX
Micro ATX
RUBY-9713VG2AR
Backplane
Backplane
PBP-13D4 PBP-14A7 PBP-14AC PBP-14AC-B
PBP-14P4 PBP-14PD64
Power Supply
Power Supply
ORION-D4602P ORION-D4201P ORION-D3502P ORION-D3501P
ORION-D4601P ORION-D5501P ORION-300DX

Ordering Guide

19” 4U black rack-mount chassis for M/B version

19” 4U rack-mount chassis for M/B version

19” 4U black rack-mount chassis for PICMG version

19” 4U rack-mount chassis for PICMG version

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon® is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
