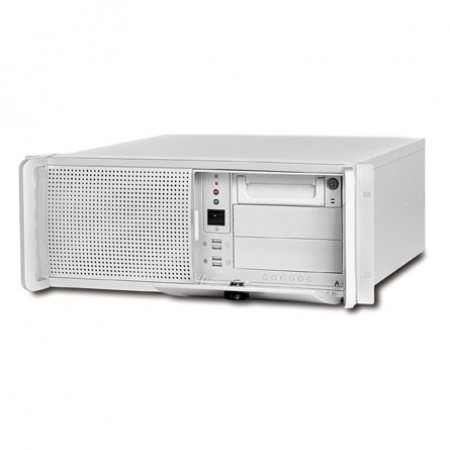

19" 4U industrial rack-mount chassis
5.25"x3 +2 internal 3.5" HDD drive bays for RAID 0, 1, 5 & CD-ROM
Two ball-bearing cooling fans (12 cm x1 + 8 cm x1) for better ventilation
2 USB ports at the front
Three card retainer positions
One modularized function panel for single (default) and dual (optional) systems
PS/2 redundant power supply installable
ATX M/B applicable, especially for big-AT sized M/B
19" 4U rack-mount chassis with 14-slot (4xPCI) PICMG backplane and 330W ATX power supply
19" 4U rack-mount chassis with 14-slot (7xPCI) PICMG backplane and 350W PFC ATX power supply
19" 4U rack-mount chassis for ATX motherboard and 330W ATX power supply
19" 4U rack-mount chassis for ATX motherboard and 350W PFC ATX power supply
Specifications are subject to change without notice.
® 4, Pentium ® III, Pentium ® II and Celeron ® are registered trademarks of Intel ® Corporation. Xeon
® is a trademark of Intel ® Corporation. Other trademarks, logos, brands and company names are the property of their respective owners.
