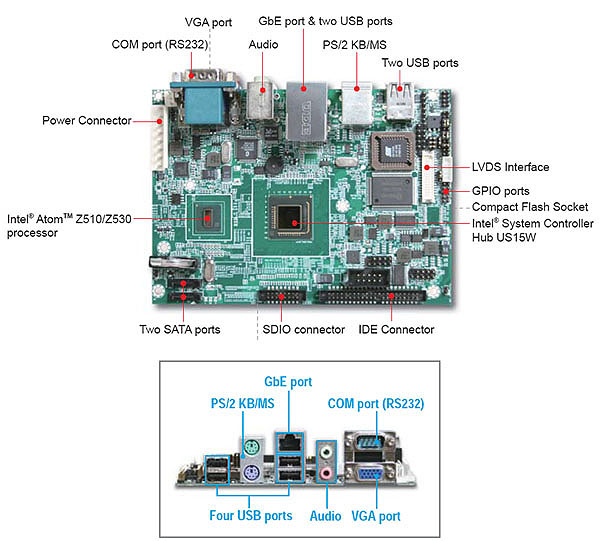

Intel® 45nm Ultra Low Power Atom™ processor based ECX embedded board with VGA, LVDS, Gigabit Ethernet, Audio, USB and SDIO

  • Intel® Atom™ processor Z510 / Z530 and System Controller Hub US15W (TDP≤5W)
  • One 200-pin SO-DIMM supports DDR2 SDRAM up to 2GB
  • One Type II Compact Flash, one IDE & two SATA ports
  • Dual independent display: VGA and 24bit LVDS
  • One Gigabit Ethernet

Ordering Guide

3.5" ESB based on Intel® Atom™ 1.1G processor with VGA/LVDS, LAN, COM, USB and Audio

3.5" ESB based on Intel® Atom™ 1.6G processor with VGA/LVDS, LAN, COM, USB and Audio

Packing List

  • SATA cable × 1
  • IDE cable × 1
  • SDIO daughter board × 1

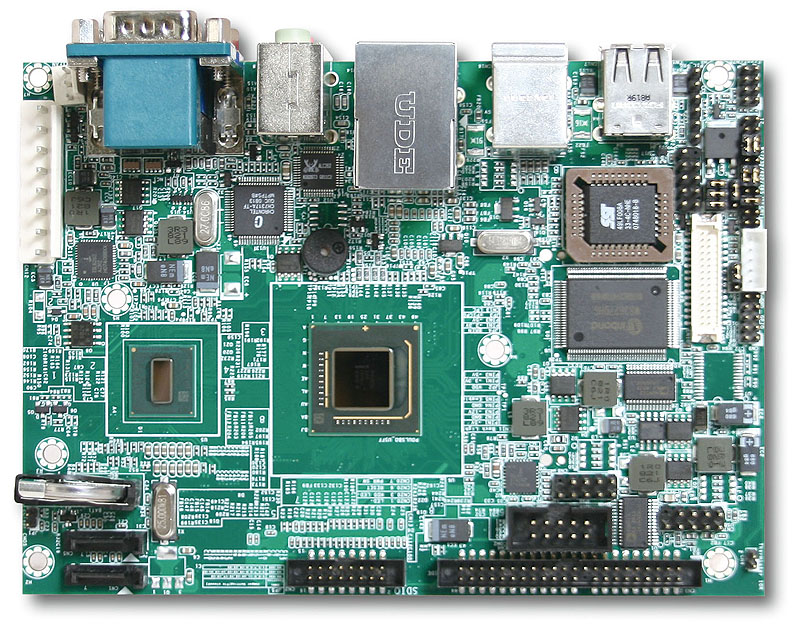

  • One PEB-2737VLA Main Board
  • One 2-in-1 Heatsink
  • One Installation CD
  • One ATX Power Cable

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
