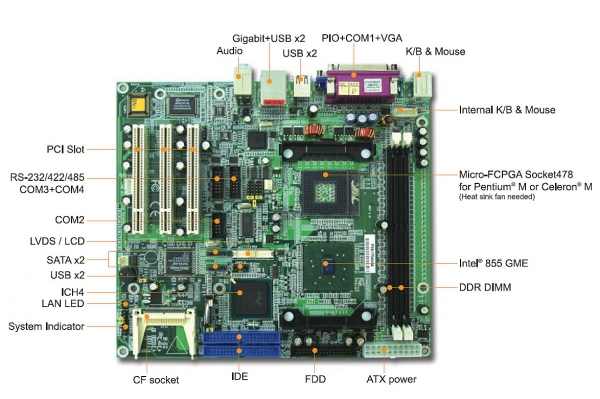

PEB-7704VGA

microATX Embedded board based on Intel® Pentium® M or Celeron® M processor with VGA / Panel / Gigabit LAN/ Audio / 4COM / SATA



Features
  • Micro-FCPGA socket 478 for Intel® Pentium® M or Celeron® M processor, 400/533 FSB
  • Intel® 855 GME and ICH4 embedded chipset
  • Support 3 PCI slots and 6 USB 2.0 ports for favorable application.
  • Intel® 82541GI Gigabit LAN for 10/100/1000 Base-TX Fast Ethernet
  • Dual independent display support LVDS and VGA
  • Support 2 Serial ATA function
  • Micro ATX form factor (244×244 mm) industrial motherboard

Ordering Guide

PEB-7704VGA
Micro ATX Embedded board for Pentium® M processor with Gigabit LAN / Audio / SATA / CF / LCD / VGA

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
