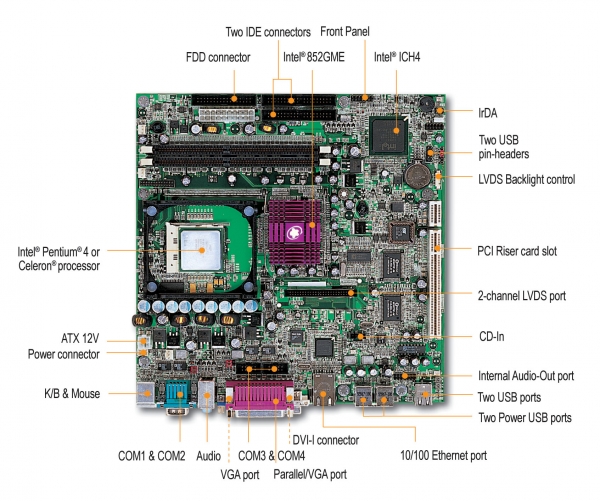

PEB-7710VLA

EmbATX industrial M/B, based on Intel® Pentium® 4 or Celeron® processor with DDR, AGP4X VGA/LVDS/DVI, dual display, Fast Ethernet and audio



Features
  • Intel® Pentium® 4 or Celeron® processor in the 478-pin package
  • Intel® 852GME integrated high performance 2D/3D graphics
  • Integrated VGA/LCD (DVI/LVDS) controllers
  • Dual independent display and four serial ports
  • Flash ROM for easy BIOS upgrade and video BIOS for DFP
  • PCI expansion slot (EmbATX defined)
  • Single Fast Ethernet with RJ-45 connector; Gigabit Ethernet optional
  • AC'97 audio with 2-channel amplifier@6W

Ordering Guide

PEB-7710VLA
EmbATX industrial M/B, based on Intel® Pentium® 4 or Celeron® processor with DDR SDRAM, AGP 4X VGA/Panel, dual display, Fast Ethernet and audio

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
