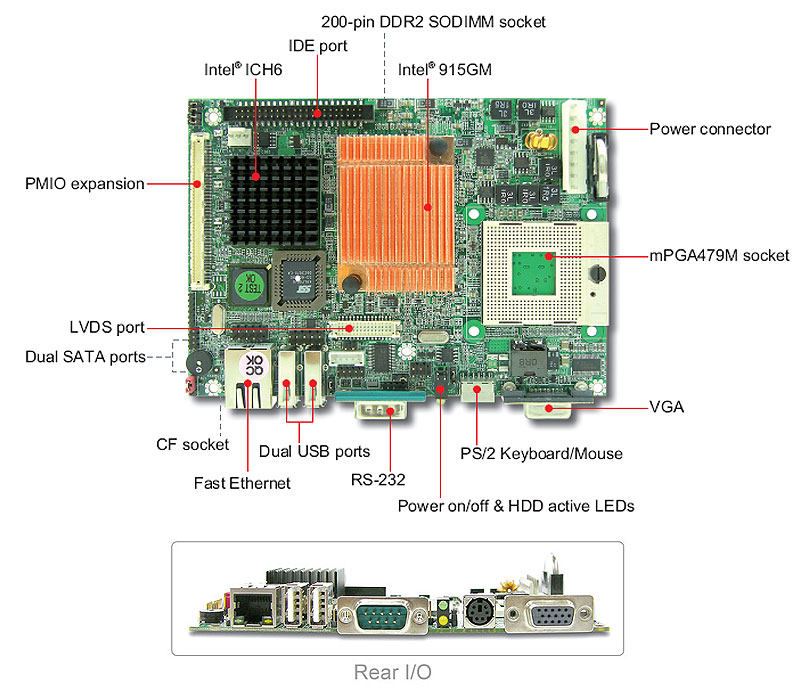

Intel® Pentium® M or Celeron® M processor based Intel® ECX Single Board Computer with DDR2 SDRAM, VGA/Panel and Fast Ethernet

  • Intel® defined ECX form factor (4" x 5.7") to fit in wide range of embedded systems
  • Intel® 915GM chipset to support scalable high performance uFC-PGA Pentium® M processors up to 2.0Ghz
  • Maximum 1GB SODIMM memory
  • Supports dual displays via VGA and LVDS interfaces or display interface that transformed from SDVO signal
  • One PMIO expansion connector includes PCI, PCI Express x1, I2C, LPC, AC’ 97, USB and SDVO signals

Ordering Guide

3.5" ECX base on Intel® Pentium® or Celeron M processor with DDR2 SDRAM, VGA/Panel and LAN

Packing List

  • PB-C1S4G Multi I/O Expansion Board with Four Serial RS-232/422/485 Selectable Ports
    About PB-C1S4G
  • PB-M1AUM Multi I/O Expansion Board with Mini-PCI socket, Audio and Dual USB Ports
    About PB-M1AUM

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon® is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
