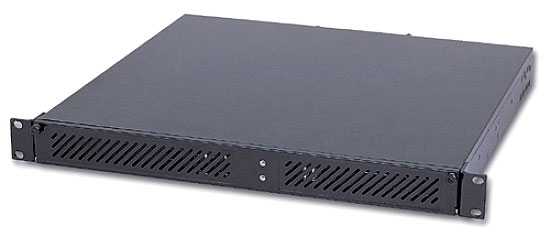

19" 1U Height industrial rack-mount P4 chassis

  • Single power supply with higher +12V output for Pentium® 4 processor
  • Cooling tunnel design for expiring heatgenerated by CPU
  • Power cable routed beneath the cooling tunnel to avoid disturbance of air path
  • Two PCI expansion slots for adding morefunctions to system

Construction Heavy-duty steel
Drive Bay External: NB CD-ROM x1 (or equivalent CD-RW / DVD-ROM) + NB FDD x1 Internal: 3.5” HDD x2
Cooling Fan One 12cm ball-bearing fan
Indicator Power on/off x1, HDD x1
Switch Power on/off x1, System reset x1
Connector Two USB connectors on the front panel, reserved one COM port cutout
Standard Color Black
Dimension 481(W) x 429(D) x 44(H) mm; 19”(W) x 18.7”(D) x 1.7”(H)
Weight Net: 10 kg (22.05 lb); Gross: 13 kg (28.67 lb)
Backplane PBP-03P2X: 3-slot (2xPCI) PICMG backplane
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 6A@115V, 3A@230V
Efficiency > 65%
MTBF 105,405 hrs
EMI & Safety Approval UL, cUL, TVU, CE, FCC
Temperature/Humidity Operating: 0°C  ~ 50°C , 20 ~ 85%RH Storage: -20°C  ~ 70°C , 10 ~ 90%RH
Dimension (WxDxH) 100x190x40.5 mm; 5.9”x5.5”x3.4”
Operating Temperature 0°C to +55°C
Storage Temperature -20°C  to +80°C
Relative Humidity 5% to 95%, non-condensing
Vibration 5~7 Hz: 0.5” double amplitude displacement 7~2000 Hz: 1.5g acceleration

Ordering Guide

19" 1U rack-mount chassis with 3-slot (2xPCI)PICMG backplane and 250W PFC power supply

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
