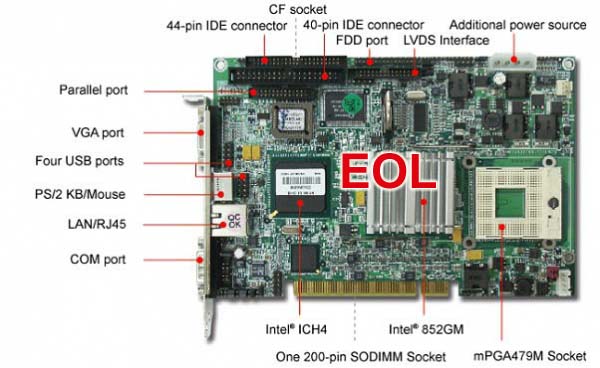

ROBO-6710VLA

?PGA479M Pentium® M/Celeron ® M processor based half-sized PCI Single Board Computer with VGA, LCD, LAN and Audio



Features
  • Support Intel® low power consumption 400MHz FSB Pentium® M/Celeron® M process for thermal/power limited applications
  • Fanless solution with on-board Intel® ULV Celeron® M 600MHz processor (ROBO-6730VLA)
  • Support dual display function via VGA and LVDS output
  • Perfect engine of slim computer with LVDS interface LCD panel
  • On-board Intel® 10 BASE-T/100BASE-TX Fast Ethernet
  • One SODIMM socket at the rear that supports up to 1GB system memory
  • One Type II Compact Flash at the rear that supports up to 1 GB flash disk for installation OS without hard drive
  • Audio Code '97 (AC'97) 2.2 for a high quality audio architecture
  • PCI bus interface for higher flexibility and expandability

Ordering Guide

ROBO-6710VLA
?PGA479M Pentium® M/Celeron® M processor based half-sized PCI SBC with VGA, LCD, LAN and audio

ROBO-6730VLA
Intel® ULV Celeron® M processor based half-sized PCI SBC with VGA, LCD, LAN and audio

ROBO-6710VLA
?PGA479M Pentium® M/Celeron® M processor based half-sized PCI SBC with VGA, LCD, LAN and audio

ROBO-6730VLA
Intel® ULV Celeron® M processor based half-sized PCI SBC with VGA, LCD, LAN and audio

Packing List

Standard
  • IDE Cable ATA/100
  • FDD Cable
  • IDE Cable ULTRA ATA/66
  • 1 Serial/1 Parallel cable with Bracket
  • Y-Cable 6Pin Mini Din KB/MS
  • Cable Assy 4F-4F 1007#26 400mm
  • CPU Cooler
  • Utility CD Driver with user's manual

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
