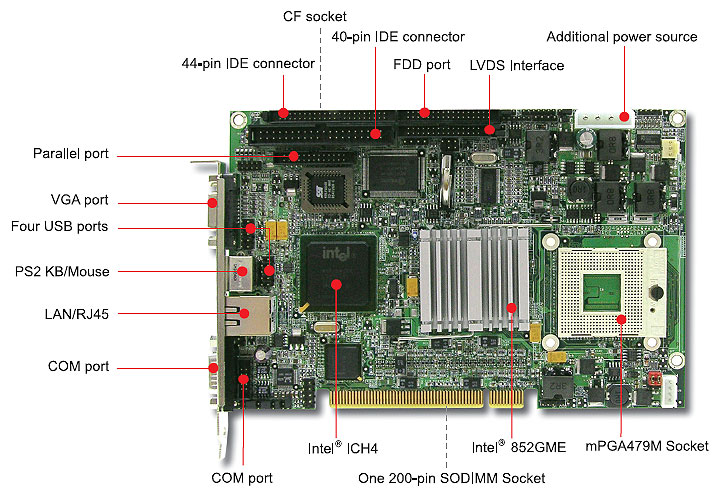

mPGA479M Pentium® M/Celeron® M processor based half-size PCI Single Board Computer with VGA, LCD, GbE and Audio

  • Support Intel® low power consumption 533/400MHz FSB Pentium® M/Celeron® M processor for thermal/power limited applications
  • One SODIMM socket at the rear that supports up to 1GB ECC system memory for critical applications
  • Support dual display function via VGA and LVDS output
  • Perfect engine for slim computers with LVDS interface LCD panel
  • On-board Intel® 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet
  • One Type II Compact Flash at the rear supports up to 1GB flash disk for installation OS without hard drive
  • Audio Codec'97 (AC'97) 2.2 for high quality audio architecture
  • PCI bus interface for higher flexibility and expandability
  • Optional support TV-out by project

Ordering Guide

mPGA479M Pentium® M/Celeron® M processor based half-size PCI SBC with VGA, LCD, GbE and Audio

Packing List

  • IDE Cable ULTRA ATA/66
  • 1 Serial/1 Parallel cable with Bracket
  • Y-Cable 6Pin Mini Din KB/MS
  • Cable Assy 4F-4F 1007#26 400mm
  • IDE Cable ATA/100
  • FDD Cable
  • Utility CD Driver with user's manual
  • CPU Cooler

  • PA-M1AU Multimedia kit with audio and USB ports on bracket
Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon® is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
