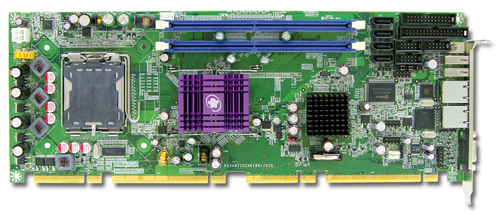

Intel® Core™ 2 Duo processor based on PICMG 1.3 SHB with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB
ROBO-8912VG2AR is based on the Intel® Q965, ICH8DO chipset. It supports DDR2 memory, and two Gigabit Ethernet. With PCI Express, Image Processing, Industrial Automation, and Digital Signage applications are able to run at faster rates.

  • Supports 45nm Intel® Core™ 2 Duo processor that generates a maximum 65W TDP. Lower TDP than socket 775 Pentium® 4 processor makes the vertical mount slot board more reliable
  • More features, such as EM64T, EIST, XD & VT, can be easily applied to system by changing processors
  • Integrated Intel® GMA 3000 graphics engine built with high grade display capability
  • Flexible design of four external PCI Express x1 can aggregate as one PCI Express x4 for storage device through backplane

Processor Intel® Core™ 2 Duo/ Pentium® D/Pentium® 4/ Celeron® D
Chipset Intel® Q965+ICH8DO
Memory 2x DDR2 DIMM up to 4GB
Storage Devices 6x SATA
1x FDD
Expansion Interface 4x PCI slots
1x PCIe x16 slot
4x PCIe x1 slots
Audio Realtek ALC 262 HD Audio codec
Ethernet 2x GbE
Serial Port 1x RS232
1x RS232/422/485
USB 10x USB 2.0
GPIO 8-bit
Others 1x Parallel
Display Interface VGA
Dimension 338.5 x 126.39mm

Ordering Guide

PICMG 1.3(PCI-E+PCI).Socket T.P4.SBC.w/VGA/Dual GbE/Audio

Packing List

  • B3751110 Installation
  • B8981980 PICMG SBC Handling and Installation Notice
  • B6901990 SATA II cable
  • B6900600 FDD cable
  • B6900270 dual head COM port cable with bracket
  • B6900643 PRN cable

  • B6901870 PS/2 Keyboard/Mouse Cable and oneUSB with bracket
  • Low Profile LGA775 Cooler High efficiency slim cooler that increases reliability of system
  • B6902230 USB port cable with bracket
  • PA-M1AU AB9-2066 PA-M1AU Multiple Media kit
  • PS/2 Keyboard/Mouse Cable with Bracket B6901442 PS/2 Keyboard/Mouse Cable with bracket
Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon® is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
