RUBY-7720VG2A

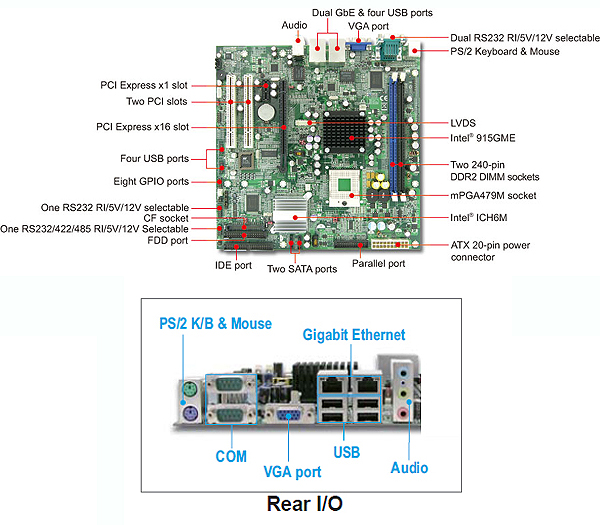

Intel® Pentium® M or Celeron® M processor based Micro-ATX Motherboard with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB
RUBY-7720VG2A

  compare_icon

Features
  • Industrial mainboard in Micro-ATX form factor with 915GME chipset that supports Intel® Pentium® M and Celeron® M processor up to 2.0GHz
  • Maximum 2GB DDR2-533 system memory
  • Onboard dual display: VGA and LVDS, 3rd display via PCI-E x16 Graphic card
  • One PCI-Express x16 slot for high-end graphics card or ADD2 card
  • Dual Gigabit Ethernet ports based on PCI- Express x1 interface
  • Two 32-bit PCI expansion slots with riser card supported
  • Fanless cooler for Intel® ULV processor

Ordering Guide

RUBY-7720VG2A
Intel® Pentium® M or Celeron® M processor based Micro-ATX Motherboard with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon® is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
