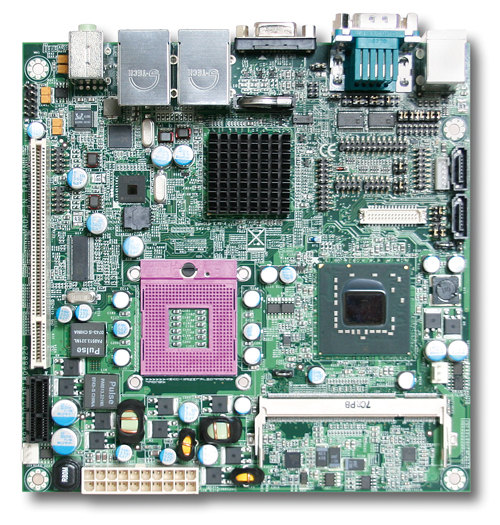

WADE-8068

Leading Mobile Intel® Core™ 2 Duo processor Mini-ITX with DDR2 SDRAM, Dual Displays, Two GbE LAN ports, Four COM Ports, LPT and USB
WADE-8068

  compare_icon
The WADE-8068 built with Intel® mobile GME965 chipset takes advantage of Inte® Core™ 2 Duo technologies. Based on an integrated graphic media accelerator (GMA) X3100 graphic device, the WADE-8068 with its diverse serial ports makes it ideal for applications such as Panel PCs, Lottery, Medical, Gaming, and Digital Signage.


Features
  • Intel® Core™ 2 Duo and Celeron® M processors
  • Intel® GME965 and ICH8M-E Chipset
  • Two 200-pin SODIMMs support dual channel DDR2 SDRAM up to 4GB
  • Dual Display: VGA/24bit LVDS, 3rd Display via expansion slot Dual Gigabit Ethernet ports
  • Two SATA II ports and One Type II Compact Flash
  • One PCI slot and one PCIe x1 slot with PCIe x4 signal
  • Three RS232 ports and one RS232/422/485 port

Specifications
Processor Intel® Core™ 2 Duo/ Celeron® M
Chipset Intel® GME965 + ICH8ME
BIOS Award
Memory 2x DDR2 SODIMM up to 4GB
Storage Devices 2x SATA
1x CF
Expansion Interface 1x PCI slot
1x PCIe x1 slot
Audio Realtek ALC888 HD Audio codec
Ethernet 2x GbE
Serial Port 3x RS232
1x RS232/422/485
USB 8x USB 2.0
GPIO 16-bit
Others 1x Parallel
PS/2 KB&MS
Display Interface VGA/LVDS
Dimension 170 x 170mm

Ordering Guide

AB1-3233
WADE-8068.Mini-ITX ESB.Intel Core 2 Duo/Celeron M.w/DDR2 SDRAM/VGA/LVDS/Dual GbE/Audio

AA1-3027
PEP-581R. 1 Slot Riser Card for Right Expansion.1xPCI

AA1-3050
PEP-5311R.1 Slot Riser Card for Right Expansion.1xPCI

AA1-3049
PEP-592R.2 Slots Riser Card for Right Expansion. One PCI and One PCI-E x4

Packing List

  • One WADE-8068 Mini-ITX Main Board
  • One Installation CD
  • One SATA Cable
  • One I/O shield
  • One CPU Fan
  • One COM Cable
  • One LPT Cable
Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon® is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
