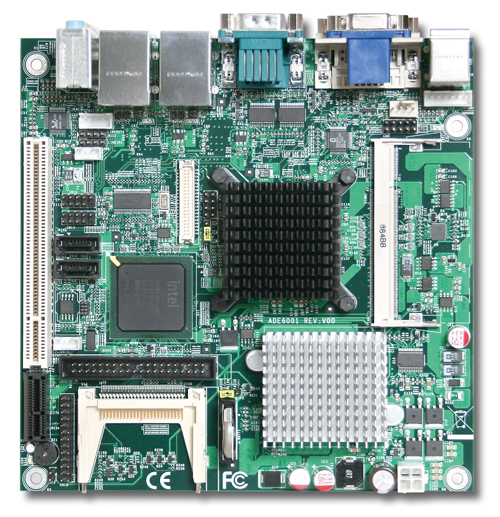

Intel® Atom™ N270 processor based Mini-ITX Board with Dual Display, Dual Gigabit Ethernet, Two SATA Ports, Two COM ports and Eight USB Ports
Built with the Intel® mobile 945GSE chipset, WADE-8170 takes advantage of Intel® AtomTM N270 technologies. WADE-8170 features low power while providing multiple displays such as LVDS, VGA, TV-out and DVI. Based on 12V & 15V~24V DC power input design, the WADE-8170 would be the best solution for POS, Medical, Gaming and Digital Signage applications.

  • Intel® Atom™ N270 1.6GHz processor
  • Intel® 945GSEand ICH7-M chipset
  • 12V, 15V~24V DC Power Input
  • One 200-pin SODIMM supports single channel DDR2 SDRAM up to 2GB
  • Dual display: VGA/LVDS/DVI/TV-Out, 3rd display via riser card
  • One PCI expansion slot (Two PCI & one PCIExpansion x1 slots via riser card)
  • Two SATA, one Compact Flash socket & one IDE connector

Processor Intel® Atom™ N270
Chipset Intel® 945GSE + ICH7M
BIOS Award
Memory 1x DDR2 SODIMM up to 2GB
Storage Devices 2x SATA
1x IDE
1x CF
Expansion Interface 1x PCI slot
1x PCIe x1 slot
Audio Realtek ALC888 HD Audio codec
Ethernet 2x GbE
Serial Port 2x RS232
USB 8x USB 2.0
GPIO 8-bit
Others 1x S-Video
1x Parallel
Display Interface VGA/DVI/LVDS
Dimension 170 x 170mm

Ordering Guide

WADE-8170.Mini-ITX ESB.945GSE+N270 processor.w/DDR2 SDRAM/VGA/LVDS/Dual GbE Ethernet/Audio/12VDC Input

PEP-5C1RX1. One PCI-E x1 Slot Riser Card for Right Expansion. PCI(no signal) +PCIe connectors.

Packing List

  • One WADE-8170 Mini-ITX Main Board
  • One Installation CD
  • One SATA Cable
  • One SATA Power Cable
  • One I/O shield
