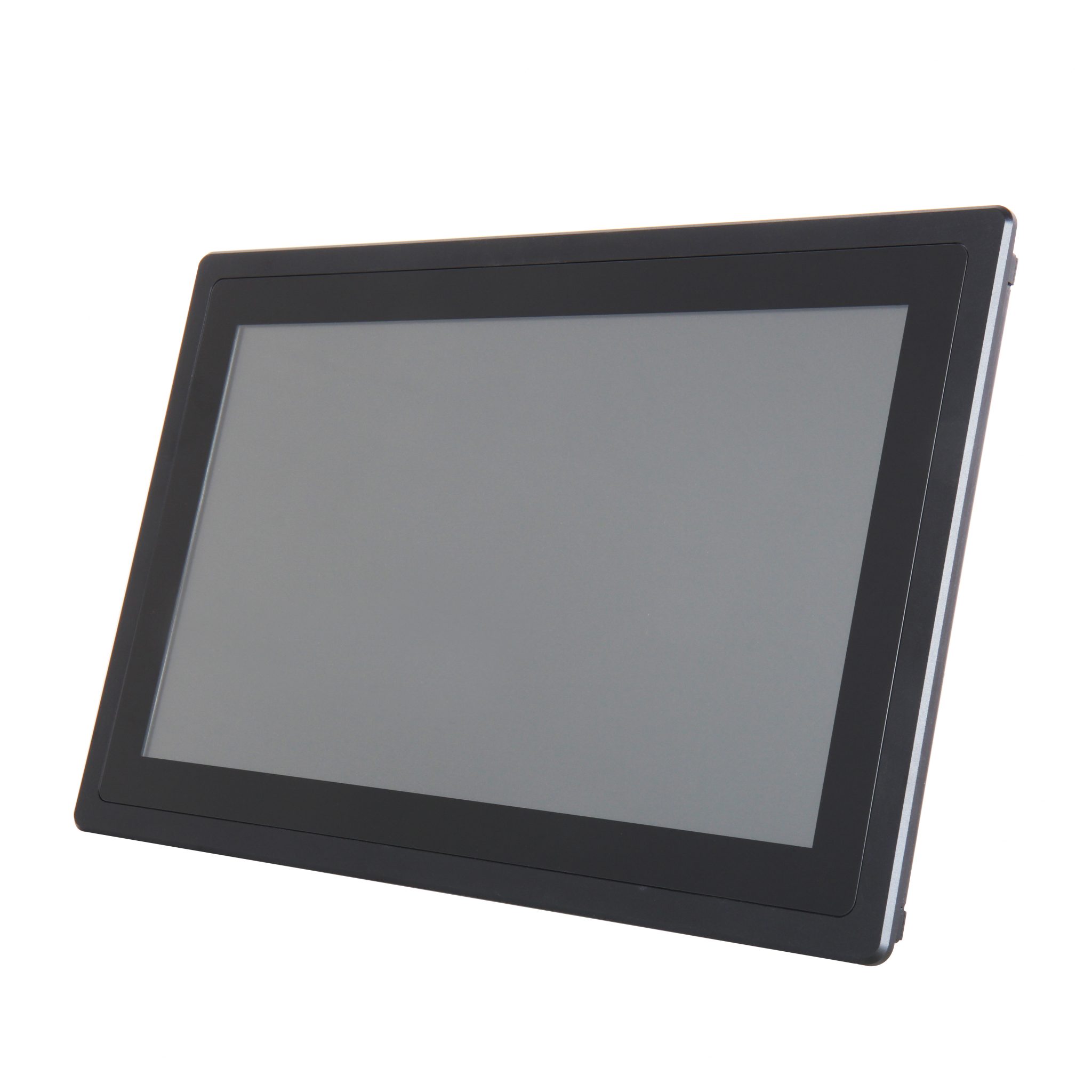

FUDA4-S1623_45
FUDA4-S1623

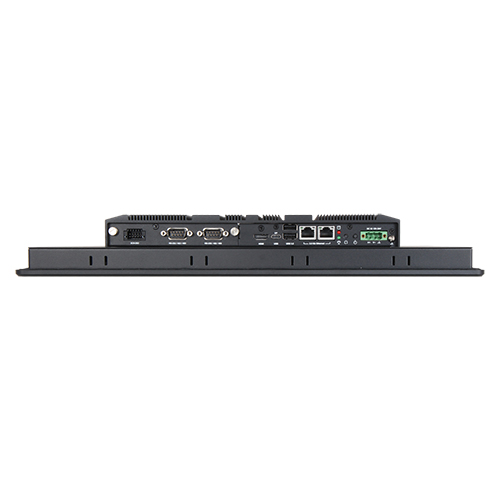

FUDA4-S1623_IO_500pix

FUDA4-S1623

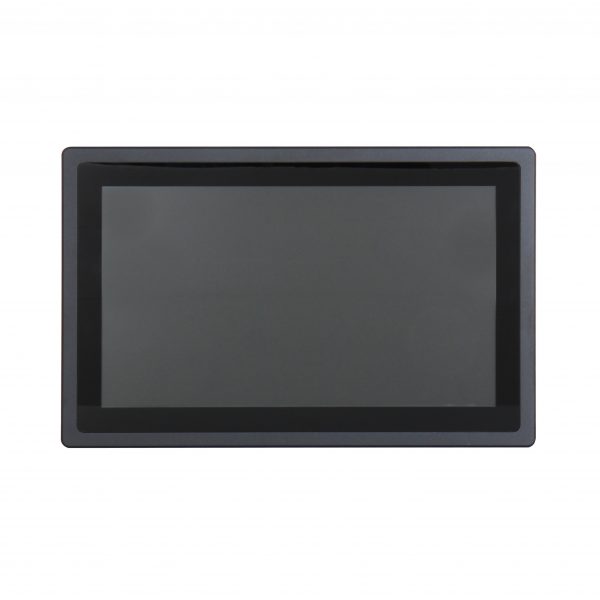

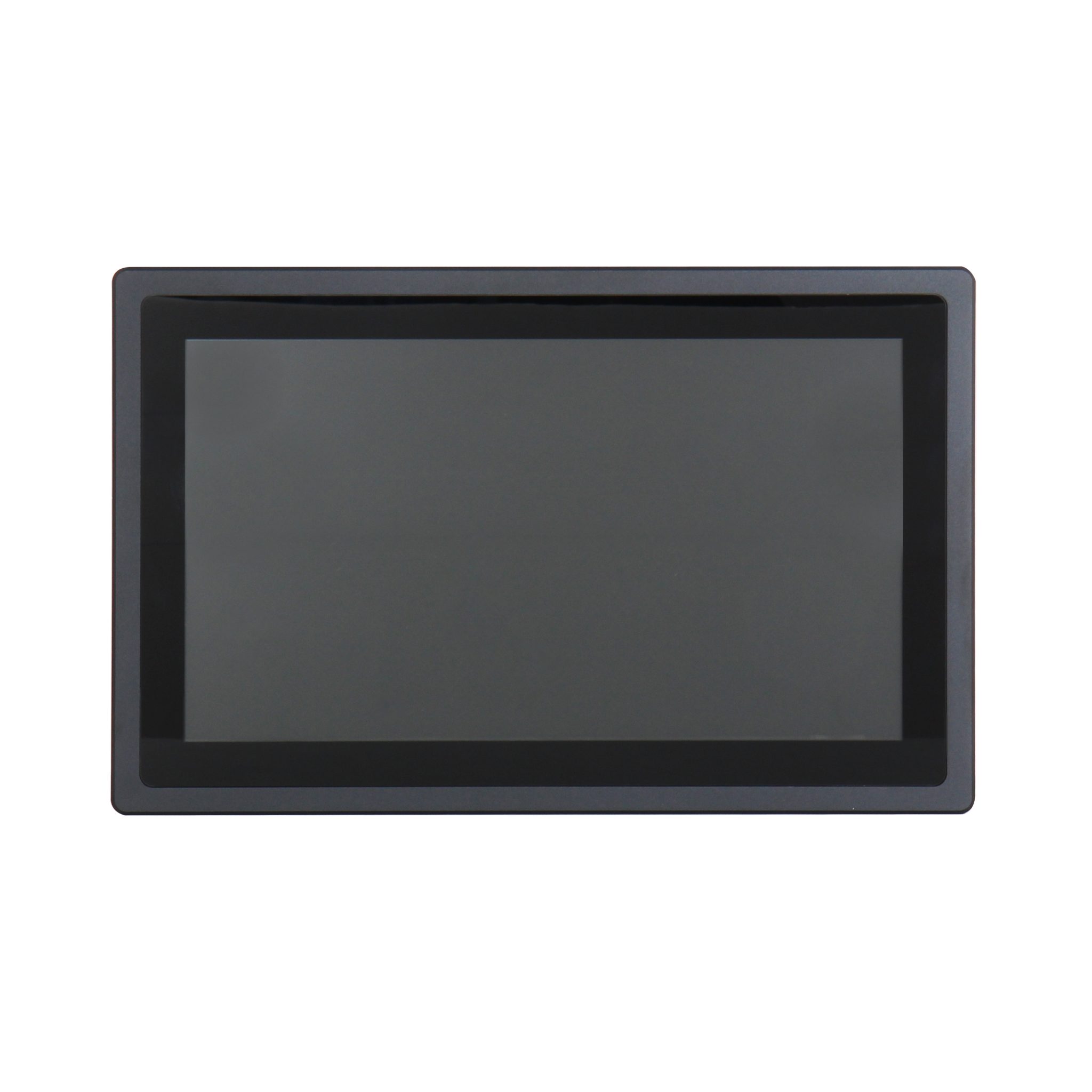

The FUDA4-S1623 is a durable 15.6-inch industrial touch panel PC featuring WXGA display, Intel Atom® processors, up to 16GB DDR5L RAM, extensive I/O ports, and IP65/IP20 protection. Ideal for automation, smart factories, and harsh industrial environments.
  • Intel Atom® X7213RE/X7433RE processors
  • DDR5L SDRAM up to 16GB
  • eMMC storage up to 128GB, expandable via M.2 SSD
  • WXGA (1366 x 768) 15.6” multi-touch display
  • Wide operating temperature range: -25°C to 65°C
  • Dual 2.5GbE Ethernet ports
  • IP65 front bezel protection, IP20 enclosure
  • Low power consumption (17.2W min.)
Documents & Downloads

Specification

Specifications
Model Name FUDA4-S1623
LCD Size 15.6″
Resolution WXGA 1366x 768
Brightness 400
Contrast Ratio 800:1
Backlight LED type
Touch Screen Projected Capacitive Multi-Touch (10 points)
System
SoC Intel Atom® X7213RE processor (6M Cache, up to 3.40 GHz) (TDP: 9 watt)
Intel Atom® X7433RE processor (6M Cache, up to 3.40 GHz) (TDP: 9 watt)
Memory UP to 16GB DDR5L 4800 SDRAM on one 262 pin SO-DIMM socket
BIOS AMI
Graphics Intel® UHD Graphics
LVDS LVDS
LAN Chipset Intel I226IT
TPM On board TPM 2.0 Chip
Watchdog Timer Programmable 1–255 sec
Storage Device – eMMC 5.1 Flash (Default: 128GB) BOM option
– M.2 2242/2260/2280 M key socket
OS Windows 10/11, Linux®
I/O Interface
Series Port Extension I/O board selection
– 2x RS-232/RS-422/RS-485 + 2x USB 2.0
– 2x RS-232/RS-422/RS-485 + 1x RS-232
– 2x RS-232/RS-422/RS-485 + 1x 2ch DIDO
Display 1x HDMI 2.0b
1x USB Type C with DP ALT mode
USB 2x USB 3.2 Gen 1×1 ports
1x USB type C Gen 2×1
Ethernet 2x 2.5 Gigabit Ethernet ports
Others 1x 3 pin Terminal Block Connector
1x Power Button, Reset Button
1x Power LED, 1x Storage LED
1x Extension I/O board selection
Expansion
  • M.2 2230 E key socket
    Extension I/O board selection
Mechanical
Dimension (mm) 415 (L) x 265 (W) x 56.6 (D) mm
Mounting (mm) VESA Mount 75 x 75, 100 x 100; Panel Mount
Weight (Kg)(N) 4.8KG
Weight (Kg)(G) 7.1 Kg
Power Supply DC12V ~ 24V DC input
Consumption (Max) 48.8W (12V); 48.1W (24V)
Consumption (Min) 17.2W (12V); 18.1W (24V)
Environmental
OP/Storage Temp -25~ 60 ℃ degree
Vibration 1.0G Random Operation, 10~500Hz (eMMC, SSD)
Packaged vibration test 2.16G, 10~500Hz
Shock 15G peak acceleration (11m sec. duration) / operation
Drop Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard
IP Protection Front Bezel: IP65
Whole enclosure: IP20 (IEC 60529 Edition 2.1 Standard)
Certificate FCC/CE/UKCA Class A/Heavy Industry 61000-6-2, 61000-6-4,
CE LVD Safety (EN 62368-1)
