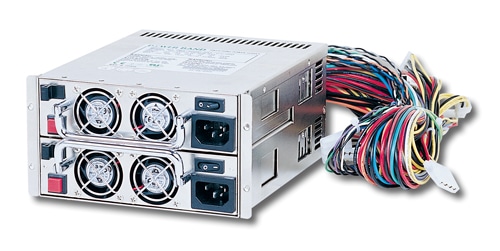

ORION-D3502P

활성 PFC 전원 공급 장치가 있는 350W+350W 미니 이중화

특징

  • Mini-redundant ATX power supply suitable for 2U and larger chassis
  • Active PFC, full-range input
  • Two independent AC inputs

규격

Specifications
Input Voltage 100V~240V AC
Input Frequency 47 ~ 63 Hz
Input Current 6A@115V, 3A@230V
Efficiency > 80%
Holdup Time 16 ms. at full load
Over Voltage Protection 3.3@4.5V; 5V@6.5V; 12V@14.5V
MTBF > 100,000 hrs
EMI & Safety Approval UL, cUL, TUV, CE, FCC
Temperature/
Humidity
Operating: 0 ~ 40°C, 20% ~ 90%RH
Storage: -20 ~ 60°C, 5% ~ 95%RH
Dimension

(WxDxH)

150 x 190 x 84 mm; 5.9” x 7.2 x 3.4”

구매 가이드

Ordering Guide
ORION-D3502P
350W+350W mini-redundant power supply with active PFC (PS/2 bracket is available)

지원

(자료 & 다운로드)

  Catalog   ORION-D3502P | Catalog    March 29, 2021
900.94 KB 2010 Downloads
