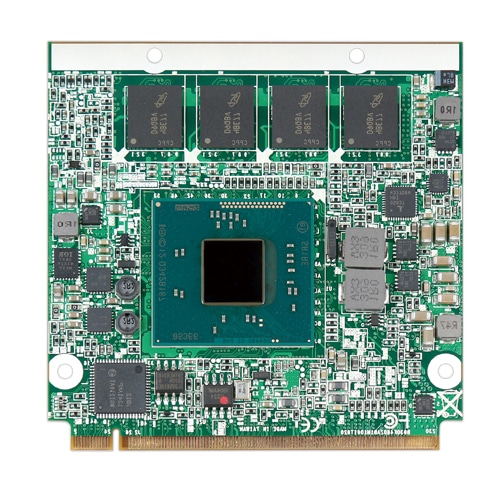

Portwell’s PQ7-M106IL-E is designed with Intel Atom processor E3800 series. PQ7-M106IL-E features lower power consumption than previous Atom based platforms, and 2GB to 8GB memory support. It also supports an extended -40C to 85C temperature with qualified industrial-grade components. PCI Express interface can support expansion devices, such as GPS, GPRS, Wireless, Bluetooth, Graphic, etc.; also the SDIO signal assists extra storage requirement. USB3.0 is a new feature different from that of previous Qseven design, as more and more customers require faster data transfer. PQ7-M106IL-E is the ideal solution for various automation or equipment applications.
| CPU | Bay Trail E3815, 512K Cache, 1.46GHz Bay Trail E3825, 1M Cache, 1.33GHz Bay Trail E3827, 1M Cache, 1.75GHz Bay Trail E3845, 2M Cache, 1.91GHz |
| Format | Qseven |
| Chipset | SoC (System-On-Chip) |
| DRAM | Up to 8 GB DDR3L-1333 soldered on board |
| Graphic Controller | Intel® HD Graphics Gen7 |
| Display Interface | VGA, eDP, DP |
| Storage | 2x SATA II (3.0 Gbit/s), optional eMMC up to 16GB |
| Network | 1x Gigabit Ethernet Intel® I210IT |
| Bus Interface | 4x PCIe x 1 (Option to 4) |
| Serial Interface | 1x Tx/Rx/CTS#/RTS# signals (Qseven R2.0) |
| USB | 6x USB 2.0, Up to 1x USB 3.0 |
| Audio | 1x Intel® High Definition Audio |
| Miscellaneous | Watchdog Timer,HW monitoring CPU, system temperature, fan |
| Firmware | AMI UEFI BIOS |
| Power Requirement | +5V DC ±5% |
| Power from W | depends on used CPU |
| Operating Temperature | -40°C to +85°C base on CPU SKU |
| Extended Temperature | -40°C to +85°C base on CPU SKU |
| Dimensions | 70×70 mm |
| AB1-3B88 | PQ7-M106IL-E3845-4G(industrial) with MOQ |
| AB1-XXXXZ | PQ7-M106IL-E3845-2G(industrial) |
| AB1-XXXXZ | PQ7-M106IL-E3827-2G(industrial) |
| AB1-XXXXZ | PQ7-M106IL-E3825-2G(industrial) with MOQ |
| AB1-XXXXZ | PQ7-M106IL-E3815-2G(industrial) |
| AB1-XXXXZ | PQ7-M106IL-N2930-8G(commercial) with MOQ |
| AB1-XXXXZ | PQ7-M106IL-N2907-8G(commercial) with MOQ |
