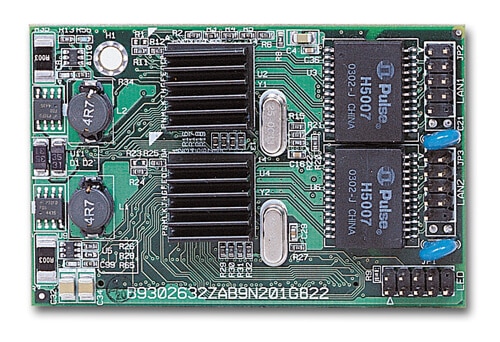

ROBO-N201G2

Portwell OmniPCI™ 연결 인터페이스가 있는 2포트 기가비트 이더넷 포트 확장 모듈

특징

  • Intel® 82541PI
  • Compact sized
  • Proprietary PCI connector for piggy back (board to board) connection
  • Fully PCI Bus spec. V2.1 compliant
  • One accessory card for extension Ethernet port(s), Link, and Speed indicators (Two LED indicators; one shows green when linked and blinks when transmitting or receiving data, the one shows green when linked at 100 Mbps and yellow when linked at 1000 Mbps)
  • One Ethernet RJ-45 daughter board and one daughter card
  • Support IEEE 802.3
  • Auto-negotiation algorithm of full-duplex and half-fuplex operation for 10 Mb/s and 100Mb/s (NWAY)
  • Dimension : 77(L) x 52(W) mm

구매 가이드

Ordering Guide
Standar ROBO-N201G2
Two-port Gigabit Ethernet port extension module with Portwell OmniPCI™ connection interface

지원

(자료 & 다운로드)

  Catalog   ROBO-N201G2 | Catalog    March 30, 2021
174.53 KB 1955 Downloads
      Driver   Driver_ROBO-N201G2-Ethernet_Intel_PRO100&1000_v8.2.zip | Driver 8.2   June 2, 2021

    Intel 82559 Ethernet driver for ROBO-N201G2

    32.10 MB 1607 Downloads
