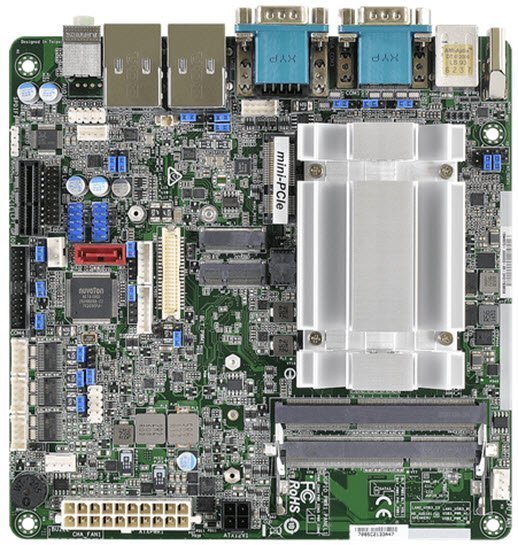

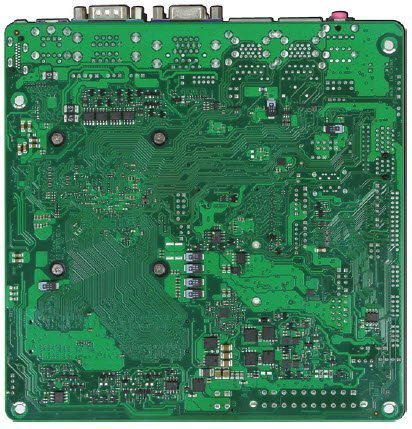

Intel® Celeron® 프로세서 N3350 기반 Mini-ITX 보드(VGA, HDMI®, LVDS, 듀얼 GbE, USB 3.0, SATA III, 미니 PCIe, M.2 포함)


  • Intel® Apollo Lake SoC Processor
  • Supports Dual Channel DDR3L 1333/1600MHz, 2 x SO-DIMM, up to 8GB system memory
  • 1 x HDMI®, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
  • 4 xUSB 3.0, 4 x USB 2.0, 1 x SATA3 port
  • Support one PCIe x1(Gen2), one M.2 Key E 2230 with PCIe x1 and USB(Shared) for Wireless, one M.2 Key M 2260/2280 with SATA signal for SSD and one full/half size Mini PCIe socket with PCIe x1 and USB(Shared)


WADE-8172 is based on Intel® Celeron® processor N3350. With dual-channel DDR3L memory and rich I/O sets, WADE-8172 empowers energy-efficient solutions for point-of-sale (POS) and industrial automation applications.


Form Factor Mini-ITX
CPU Intel® Celeron® processor N3350 in FCBGA1296 package
Chipset N/A
Memory up to 8 GB DDR3L 1600/1333 MHz memory (non-ECC) on 2x 204-pin SO-DIMM socket
Expansion 1x PCIe x1 slot
1x M.2 socket
1x full/half size Mini PCIe socket with PCIe
x1 and USB(shared)
Audio Realtek ALC887 HDA codec
LAN 2x GbE
Serial Port 2x RS-232/422/485
4x RS-232
USB 4x USB3.0
4x USB2.0
Storage Device 1x SATA III 1x M.2 socke”
GPIO 8 bit
Others N/A
Dimension 170 x 170mm

구매 가이드

Ordering Guide
AB1-3F78 (R).WADE-8172-N3350
Mini-ITX ESB.Intel® Apollo lake SoC Processor N3350 w/DDR3L/ VGA/LVDS/HDMI®/dual GbE LAN/SATA

패킹 리스트

Packing List
One Driver CD
One SATA cable
One I/O shield
One WADE-8172 motherboard


(자료 & 다운로드)

  Catalog   WADE-8172 | Catalog    March 30, 2021
1.11 MB 2676 Downloads
      BIOS   BIOS_WADE-8172_R1.00.E5.zip | BIOS R1.00.E5   June 21, 2023

    BIOS FW Updated
    Update AMI codebase
    Support F1 Stepping

    4 MB 112 Downloads
        Driver   Driver_ALL_WADE-8172_Win10_64bit.zip | Driver    June 26, 2023

      Driver Updated

      491.06 MB 67 Downloads
          User’s Manual   Manual_WADE-8172_R1.7 | Manual R1.7   October 22, 2021

        Update Operating temperature information(page 9)

        923.51 KB 1002 Downloads
