The WEBS-3583 builds on Intel® desktop Q87 chipset and takes advantages of Intel® Core™ i3/i5/i7 desktop processor technologies that can support dual channel DDR3 memory. Support two Gigabit Ethernet ports, two PCIe x4 expansion slots (or one PCIe x4 slot + one PCI expansion slot) and one Mini-PCIe socket. The WEBS-3583 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, factory automation and many industrial uses applications.
| Model | WEBS-3583 |
| M/B | WADE-8015 |
| Form Factor | Mini-ITX |
| System | |
| CPU | Intel® 4th Generation Desktop Core™ Low Power Processor |
| Chipset | Q87 |
| BIOS | Phoenix UEFI |
| Memory | DDR3/16GB |
| Graphic Controller | HD Graphics 4000 Family |
| Audio Codec | ALC886 |
| Super I/O | EC ITE IT8728 + Fintek F81216 |
| Storage | 2x 2.5” SATA HDD/SSD 1x SATA DOM |

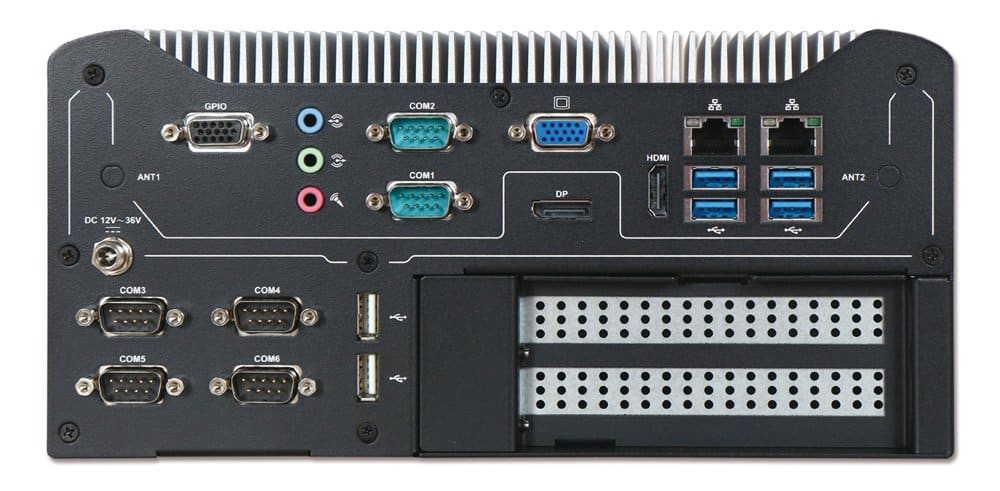

| External I/O | |
| Serial | 4x RS-232 2x RS-232/422/485 |
| USB | 4x USB2.0 4x USB3.0 |
| Display | VGA, DP, HDMI® |
| Ethernet | Intel® I217LM+I210AT |
| PS/2 | N/A |
| Audio | Line-in, Line-out, Mic-in |
| D I/O | 8-bit Digital I/O |
| Expansion | 1x Full-size Mini-PCIe 2x PCIe (or 1x PCIe + 1x PCI) |
| PWR | |
| System | DC 12V ~ 36V |
| Environment | |
| OP Temp. | -20°C ~ 50°C |
| Storage Temp. | -40°C ~ 80°C |
| Humidity | 95%@40°C, non-condensing |
| Vibratoin | 5Grms/10-500Hz |
| Shock | 50G, 11 msec |
| Mechanical | |
| Dimension(WxDxH) | 253 x 193 x 120 mm |
| Weight | 7 Kg |
| AS5-3364 | (R).ATO.WEBS-3583.Mini-ITX System |
| AS5-3446 | (R).ATO.WEBS-3583-E.Mini-ITX System. (Expansion Enhancement) |
