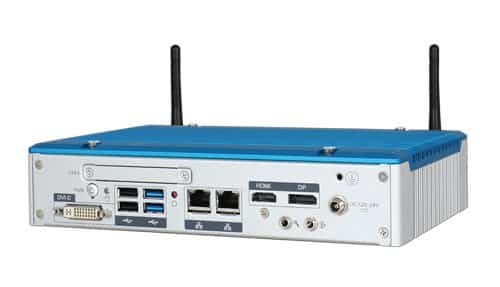

The WEBS-5481-S, a downward/slim version of WEBS-5400 series design concept, builds on Intel® Haswell ULT Low Power SoC and takes advantages of Intel® Core™ mobile processor technologies that can support dualchannel DDR3L memory. Support two Gigabit Ethernet ports and two Mini-PCIe sockets. The WEBS-5481-S is an ideal platform with HD graphic output for POS, kiosk, digital signage and transportation applications.
| Model | WEBS-5481-S |
| M/B | PEB-5731-W |
| Form Factor | Specific Form Factor 170 x 135 mm |
| System | |
| CPU | Intel® 4th Generation ULT Core™ i Processor |
| Chipset | Intel® SoC |
| BIOS | AMI UEFI |
| Memory | DDR3L/16GB |
| Graphic Controller | HD Graphics 4000 Family |
| Audio Codec | ALC892 |
| Super I/O | EC ITE IT8528 + Fintek F81216 |
| Storage | 1x CFEX, 1x 2.5” SATA HDD/SSD 1x mSATA |
| External I/O | |
| Serial | 1x RS-232 1x RS-232/422/485 |
| USB | 2x USB2.0 2x USB3.0 |
| Display | DVI-D, DP, HDMI® |
| Ethernet | Intel® I218LM+I210AT |
| PS/2 | N/A |
| Audio | Line-out, Mic-in |
| D I/O | 8-bit Digital I/O |
| Expansion | 1x Full-size Mini-PCIe 1x Half-size Mini-PCIe |
| PWR | |
| System | DC 12V ~ 24V |
| Environment | |
| OP Temp. | -20°C ~ 55°C |
| Storage Temp. | -40°C ~ 80°C |
| Humidity | 95%@40°C, non-condensing |
| Vibratoin | 5Grms/10-500Hz |
| Shock | 50G, 11 msec |
| Mechanical | |
| Dimension(WxDxH) | 235 x 160 x 50 mm |
| Weight | 1.8 Kg |
| AS5-3407 | (R).ATO.WEBS-5481-S.Mini-ITX Haswell ULT. Fanless System. |
