Super silent medical PC

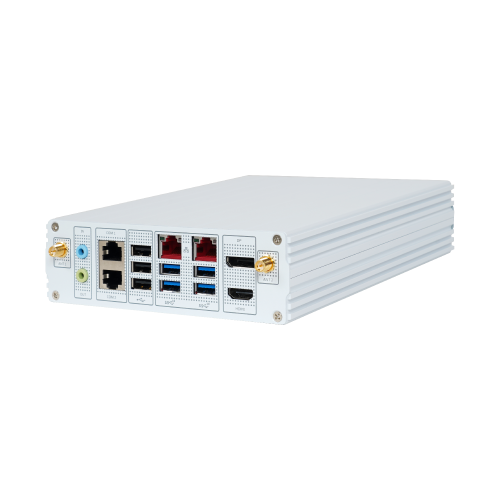

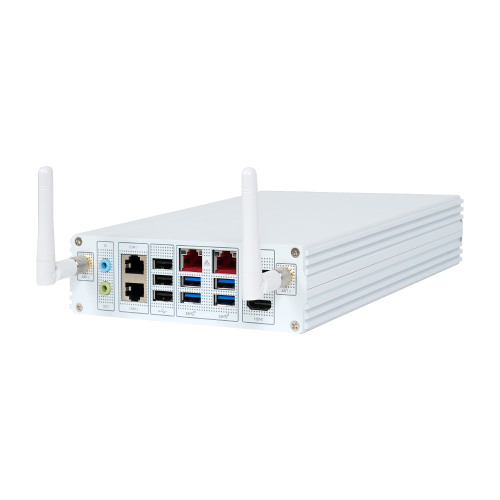

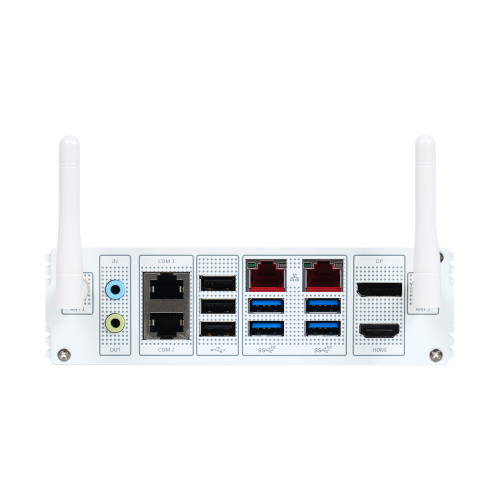

The DTEC-C012 builds on 12th Intel® Core™ i3/ i5 low power processor technologies that can support DDR5 memory. Dual display HDMI + DP up to 8K output, one M.2 2230 socket for WiFi module and one M.2 2280 for NVMe SSD. DTEC-C012 is an ideal platform with rich I/O (9x USB ports) and high resolution for telemedicine and comply with IEC60601-1-2 makes it a perfect solution to control medical equipment.
| System | |
|---|---|
| Processor | Intel® Alderlake CoreTM i3-1215UE PL1 15W/PL2 25W |
| Memory | 2x SO-DIMM up to 64GB DDR 5 4800 |
| Storage | 1x M.2 NVME with PCIe x4 for SSD 1x SATA3.0 (6.0 Gb/s) |
| BIOS | AMI uEFI BIOS (SPI ROM) |
| Expansion | Optional 1x M.2 2230 support Intel WiFi 6 + BT Module |
| I/O Interface | |
| Serial Port | 2x RJ45 COM port |
| USB | 4x USB 3.2 (Type-A) 5x USB 2.0 (Type-A) |
| Audio | Realtek ALC 897 Audio Codec MIC In/Line-out |
| Ethernet | 2x Intel I225 With 2.5G Gigabit LAN |
| Display | 1x HDMI up to 8K resolution 1x DP up to 8K resolution |
| Power Supply | |
| Power Input | DC 12~24V DC input |
| Mechanical & Environmental | |
| Operation Temperature | (- )5°C ~ 40°C |
| Storage Temperature | (- )40°C ~ 70°C |
| Dimensions | 196(L)x152(W)x44(H)mm |
