COM Express^® Type 6

High-Performance Embedded Computing with Rich Graphics and I/O

COM Express^® Type 6 is designed for high-performance embedded systems requiring powerful processing, advanced graphics, and flexible high-speed I/O. By integrating the processor, memory, graphics, and core interfaces into a standardized Computer-on-Module, Type 6 enables developers to combine scalable computing performance with an application-specific carrier board.

Portwell COM Express Type 6 modules are available in two standardized form factors:

Compact: 95 × 95 mm
Basic: 125 × 95 mm
Pinout: COM Express Type 6

PCOM-B65C

COM Express Type 6 Compact Size Module with AMD Ryzen™ Embedded 8000 Processor, DDR5 SO-DIMM, DDI, eDP, LVDS, VGA, PCIe Gen 4, USB 3.2 Gen2, discrete TPM 2.0, SATA, Out-of-Band (OOB) Management

PCOM-B65B

Intel^®PTL-H; 4P+8E+4LPE; 12Xe GPU (120 TOPS), NPU 5 (50 TOPS); 2x DDR5 SO-DIMM to 128GB IBECC; 12 PCIe Gen4 lanes; USB3.2, SATA, DDI, eDP/LVDS; MIPI-CSI

PCOM-B646

COM Express^® Type6 Compact size module with Intel Atom^® x7000E/RE Series SoC DDR5 SO-DIMM, DDI, PCIe Gen 3, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-B65A

COM Express Type 6 Basic size module with Intel^®New Gen Core Ultra 200 Series Processor DDR5 SO-DIMM, DDI, PCIe Gen 4,USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-B659

COM Express Type6 Compact size module with Intel^®13^th Gen P/U Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB4, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

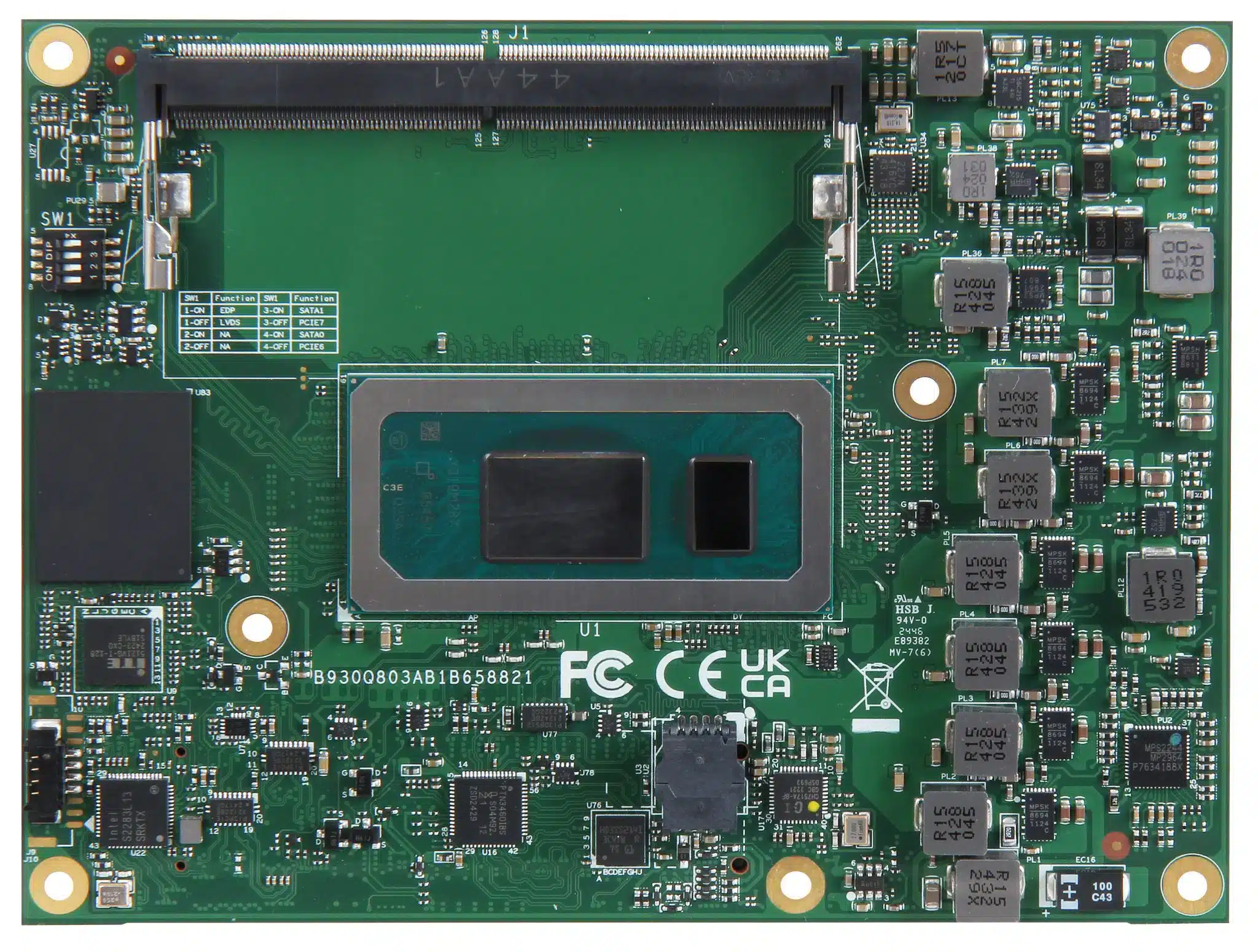

PCOM-B658VGL

COM Express Type6 Basic size module with Intel^®13^th Gen H Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen2, 2.5Gb Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-B657VGL

COM Express Type-VI Basic module with Intel^®11^th Gen H Processor with DDR4 SO-DIMM, DDI, PCIe Gen 4.0, USB 3.2 Gen2x1, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP/LVDS, SATA III and VGA

PCOM-B645VGL

Intel Atom^® Elkhart Lake series SoC based on Type 6 Compact COM-Express^{^®}module with 2x DDR4 SD-DIMM Socket

PCOM-B641VG

Intel Atom^® Apollo Lake series SoC based on Type 6 Compact COM-Express^® module with 2x DDR3L SD-DIMM Socket

PCOM-B656VGL

Intel^®Tiger Lake-UP3 Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, eDP, Gigabit Ethernet, SATA 3.0, and USB 3.2

PCOM-B655VGL

Intel^®Comet Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, VGA, Gigabit Ethernet, SATA III, and USB 3.2 Gen2

PCOM-B654GL

Intel^®Coffee Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, Gigabit Ethernet, SATA III, and USB 3.2 Gen2

PCOM-B653VGL

Intel^®Core™ Whiskey Lake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express^® module with 2x DDR4 SD-DIMM Socket

PCOM-B643VG

Intel^®Core™ 7^th Generaon Processor based on Type VI COM Express module with DDR4 SDRAM, VGA, LVDS, Gigabit Ethernet, SATA 3.0 and USB

PCOM-B642VG

Intel^®7^th Generaon Core™ Kaby Lake-S processors based on Type VI Compact-COM Express 2.0 module with DDR4 SDRAM on Two SO-DIMM slots, VGA, eDP, DP, Gigabit Ethernet, PCIE, SATA and USB

PCOM-B635VG

Data protection is more and more important in real world since big data rising. Portwell adopt new Intel^®platform to provide highest secure logic. It help customer earn trust and business by securing important information anytime

PCOM-B636VG

Intel Atom^®TM N3000 series based TypeVI COM Express with DDR3L SDRAM, VGA, LVDS, USB 3.0, PCIE and surround design.Intel Atom^®TM N3000 series based TypeVI COM Express with DDR3L SDRAM, VGA, LVDS, USB 3.0, PCIE and surround design.

PCOM-B638VG

Intel^®Core™ Kaby Lake-U/Skylake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express^® module with 2x DDR4 SD-DIMM Socket

Scalable Performance and Connectivity

Portwell offers Type 6 modules based on selected Intel^®and AMD processor platforms, covering power-efficient embedded computing through high-performance edge applications. Depending on the selected model, available features may include DDR5 memory, PCI Express, USB 3.2 or USB4, SATA, multiple display interfaces, high-speed Ethernet with TSN, TPM 2.0, and embedded AI acceleration.

The modular architecture allows developers to reuse a validated carrier board across different processor platforms and product generations, helping shorten development cycles, simplify system upgrades, and extend product lifecycles.

Applications for COM Express Type 6

With scalable processing performance, advanced graphics and flexible I/O, Portwell COM Express Type 6 modules are suitable for machine vision, edge AI inference, industrial automation, medical imaging, multi-display systems, digital signage and other embedded applications requiring high-performance graphics and extensive connectivity.
