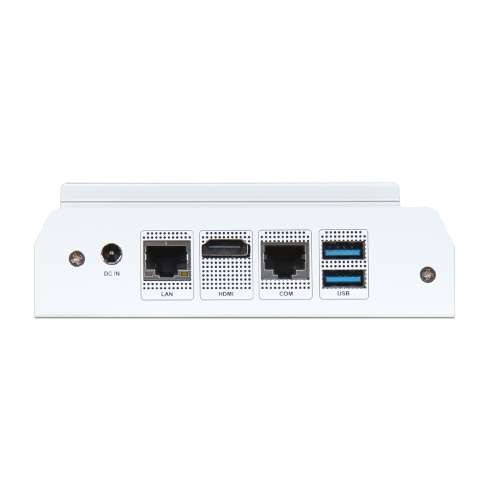

MEDS-2000 builds on Intel® Atom® Apollo Lake SOC supports Dual/Quad Core (up to 10W) that can support dual channel DDR3L memory. Support one Gigabit Ethernet port and one M.2 socket.
MEDS-2003 builds on Intel® 7th Gen (Kabylake-U) Core™ i3/ i5 SOC that can support dual channel DDR4 memory. Support dual display and storage SSD up to 128GB.
| System | |
|---|---|
| Processor | Intel® Atom® Apollo Lake SOC, (N3350/N4200) supports Dual/Quad Core (up to 10W) with 2MB Cache |
| Memory | Dual Channel DDR3L 1866/1600 Non-ECC SO-DIMM up to 8GB |
| Storage | 1x SATA III port (for SATA DOM 128G) 1x Micro-SD 3.0 socket Support Onboard eMMC 5.0 (32G) |
| BIOS | AMI uEFI BIOS 64MB |
| Expansion | 1x M.2 socket (E+A key) support WiFi, BT, 3G & 4Gt1x PCIe x1 slot |
| I/O Interface | |
| Serial Port | 1x RJ45 connector |
| USB | 4x USB 3.0 (Type-A) |
| Audio | 1x Line-in/Line-out |
| Ethernet | 1x RJ-45 connector LAN |
| Display | 1x DP up to 4096×2160 1x HDMI up to 3840×2160 |
| Power Supply | |
| Power Input | DC 12V input |
| Mechanical & Environmental | |
| Operation Temperature | 0°C ~ 40°C |
| Storage Temperature | (- )40°C ~ 70°C |
| Dimension | 113(W)x44(H)x135(D)mm |
| Fan free | Yes |
