MEDS-2003

NUC size Medical System

Features

  • NUC size 1U height compact chassis
  • MEDS-2000 equipped entry level CPU with fan free design
  • MEDS-2003 equipped Core level CPU with low dB fan design
  • Unique thermal solution
  • Rich I/O with dual display and support Wifi + Bluetooth module



System
Processor Intel® Core™ i3-7100U,QC, 2.30 GHz, 15 W
Intel® Core™ i5-7300U, QC, 2.40 GHz, 15 W
Memory 2x Dual Channel SO-DIMM DDR4 2133 MHz up to 32GB
Storage 1x SATA III port
M.2 SSD 2260 (64/ 128GB)
BIOS AMI uEFI BIOS 64MB
Expansion 2x M.2
Key E (Supports 2230)
Key M (Supports 2260)

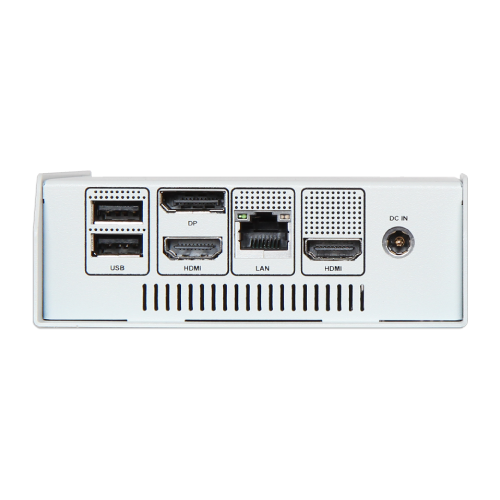

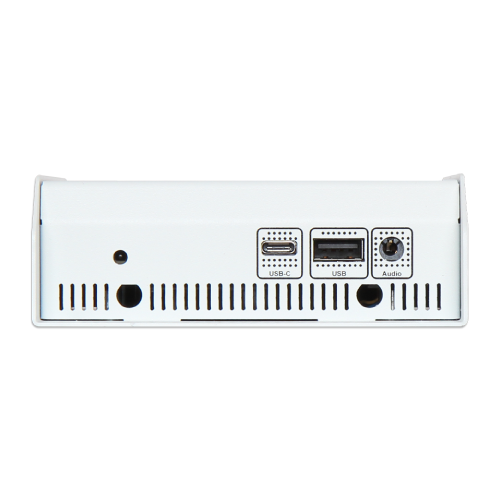

I/O Interface
Serial Port N/A
USB 3x USB 3.0 (Type-A)
1x USB 3.1 (Type-C)
Audio 1x Line-in/Line-out
Ethernet 1x RJ-45 connector LAN
Display 1x DP up to 4096×2160
2x HDMI up to 3840×2160
Power Supply
Power Input DC 12V~19V input
Mechanical & Environmental
Operation Temperature 0°C ~ 35°C
Storage Temperature (- )40°C ~ 70°C
Dimension 113(W)x44(H)x135(D)mm
