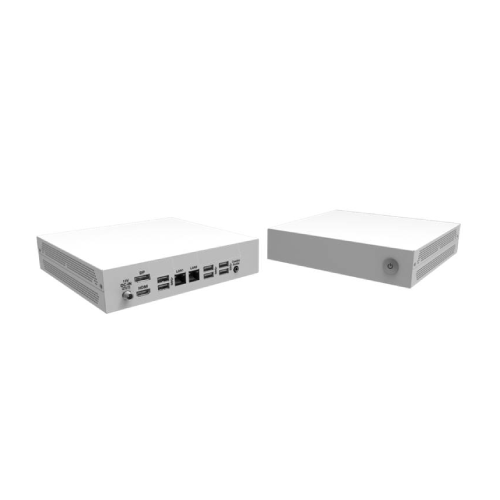

MEDS-5000-H420

Compact size medical computer w/ 2 x GbE LAN

Features

  • High performance and thermal efficient system
  • Comply with IEC-60601 medical grade
  • Support 2x GbE LAN
  • 1U compact slim size
  • 12V DC input
  • Optional Wifi & Bluetooth module
  • Medical IoT gateway application

Processor Socket LGA1151 for Intel 10th Comet Lake Core™ i7/i5/i3®, up to 35W
Memory 2x DDR4 SO-DIMM 2400/ 2666 memory up to 64GB
Storage 1x M.2 2280 SSD
OS Support Windows 10, Linux
USB USB3.0 x6
Serial port N/A
Ethernet Gigabit LAN x2
Display HDMI x1, DP x1
Audio Audio Jack x1: Combo connector
PCIe slot N/A
Optional M.2 Bluetooth & Wifi module
Power input 2.5mm DC-Jack AT 12v Power connector x1
Power limit 120W (12V/ 10A)
Power supply AC to DC Adapter
Dimension(Wx Dx H) 200 x 200 x 44.45 mm
