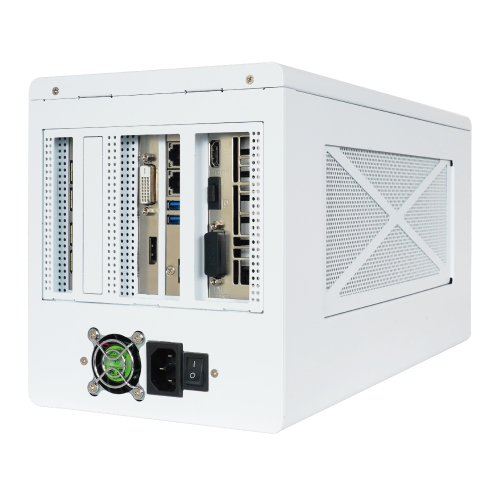

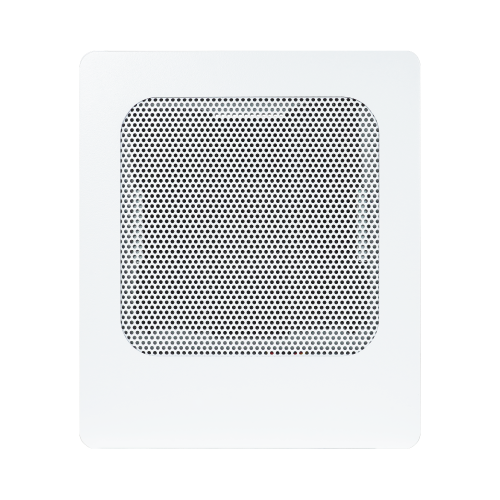

MEDS-7061

Full-size SBC system design with 4 PCIe slots for multiple add-on cards in a hospital application

Features

  • Server grade Intel® Xeon processor platform
  • Comply with IEC-60601 medical grade
  • Support 2x GbE LAN
  • Expansion PCIe x4 slot for add-on card
  • Expansion PCIe x16 slot for double width graphic card
  • AC input with medical grade 500W PSU
  • Optional Wifi & Bluetooth module
  • Best AI Inference Engine Solution




Processor Socket LGA1151 for Intel Coffee lake Core™ i7/i5/i3®, up to 65W
Memory 2x DDR4 SO-DIMM 2400/ 2666 memory up to 64GB
Storage – 1x mSATA half size SSD
– 2x 2.5″ SSD
OS Support Windows 10, Linux
USB USB3.0 x2
Serial port N/A
Ethernet Gigabit LAN x2
Display mini-DP x2
Audio N/A

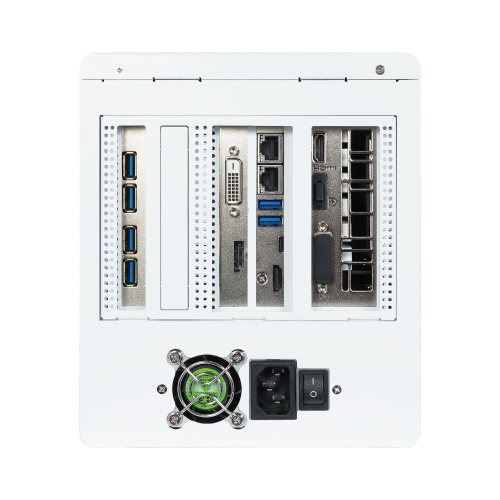

PCIe slot – 1x PCIe x16 (x16 signal)
– 1x PCIe x4 (x4 or x1 signal selectable)
– 1x PCIe x1 (x1 signal)
Optional M.2 Bluetooth & Wifi module
Power input Power cord AC plug
Power limit 500W
Power supply 500W Flex-ATX power (Medical grade)
Dimension(Wx Dx H) 170 x 400 x 204 mm
