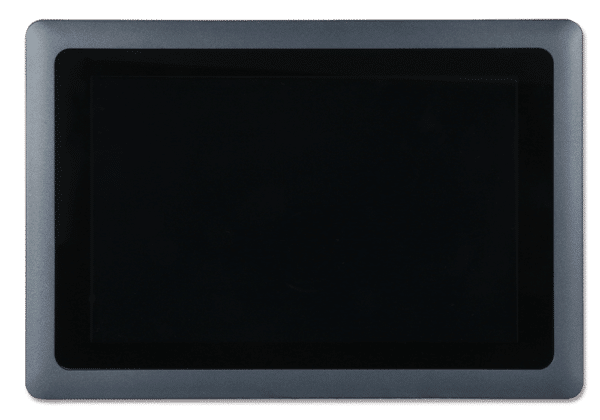

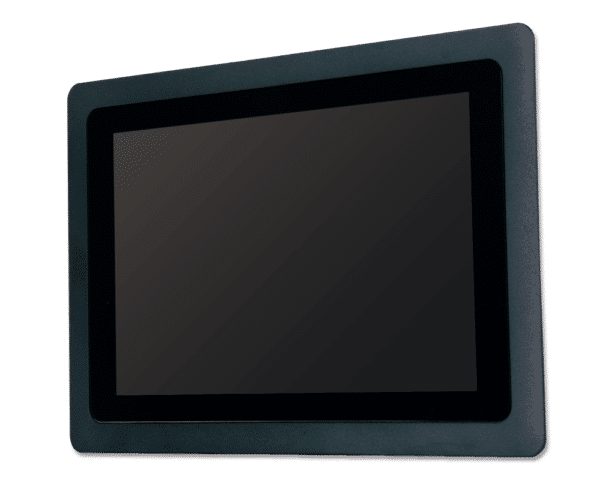

Compact and Projective Capacitive Touch HMI with Wide Temperature and Voltage Support Powered by NXP i.MX 6 Series Family


  • RISC based Fan-less and Cable-less Touch PPC
  • i.MX6 Cortex A9 1GHz
  • Built-in DDR3 2GB, 8GB eMMC
  • 10.1″ Industrial panel
  • Wide Power input from DC12~24V
  • Gigabit Ethernet * 1
  • RS-232/422/485 * 1
  • CAN * 1

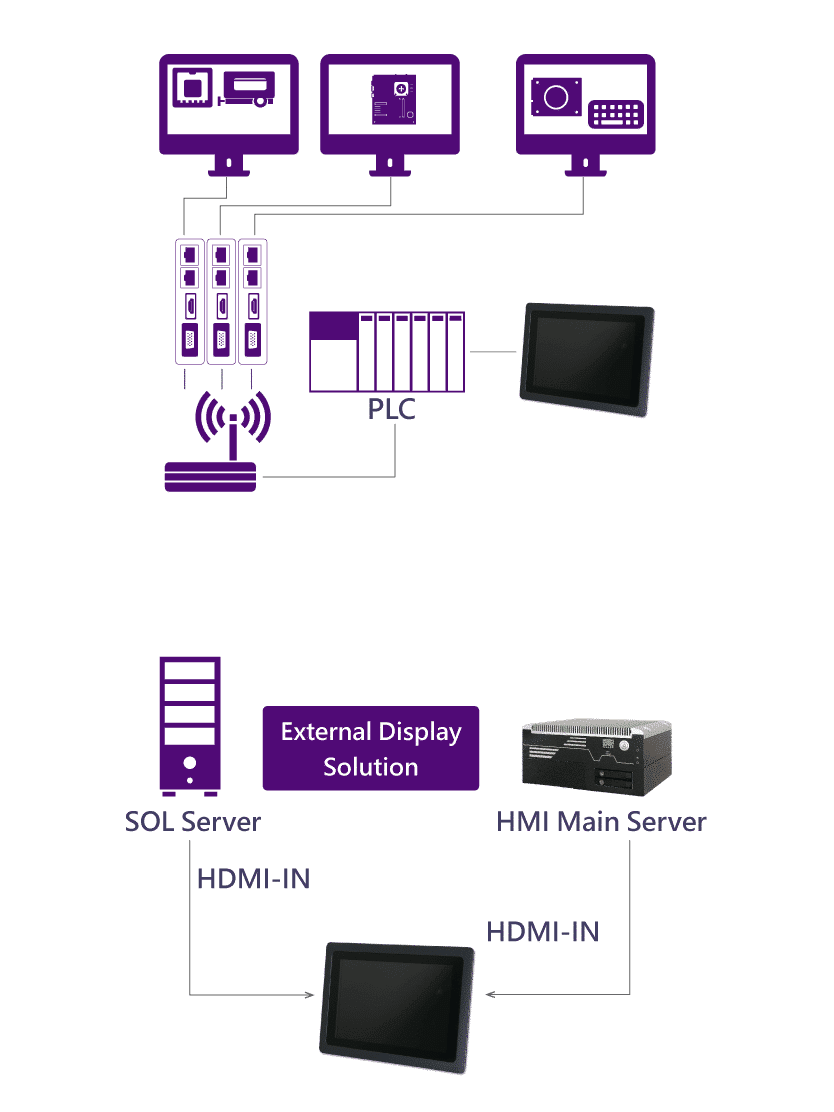

– External HDMI® monitor via one HDMI® output port

– Ideal PIP solution to integrate external video signal and computing on COMBO 10.1″ HMI


– Slim, Fan-less and Cable-less

– Panel & VESA mount support

– Removable SD cover

– 1x Full-size mPCIe socket for WIFI

– 1x Half-size mPCIe socket for mSATA

– Android, Yocto Linux + QT

– Low Impact on OS Migration

  • P-CAP multi-touch screen
  • Low Power Consumption
  • Replace Intel Atom Processor
  • Longevity Support (10~15 years)


In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. Featuring cost effective and power efficiency, COMBO Series is an ideal HMI in factory automation, food and beverage industry, data collecting equipment environments.

Model Name COMBO-S1020
LCD Size 10.1″ (16:9)
Resolution WXGA 1280 x 800
Brightness 300 cd/m2
Contrast Ratio 1300:1
Backlight LED type
Touch Window Projected Capacitive Multi-Touch
SOC Freescale™ i.MX6 Solo/Quad-core Processor (Cortex™ A9)
Memory 512MB/2GB DDR3 1066 Memory Chip on Board
Graphics Freescale™ i.MX6 Graphic Engine
LVDS Single/Dual Channel 24-bit
LAN Chipset Single Atheros AR8035 Ethernet PHY
Audio Wolfson WM8962 Audio Codec
Watchdog Timer Control by Software
Storage Device 4/8GB eMMC on Board, 1 x SD card
OS Linux™ 3.10.53 + QT5.2 / Android 5.0

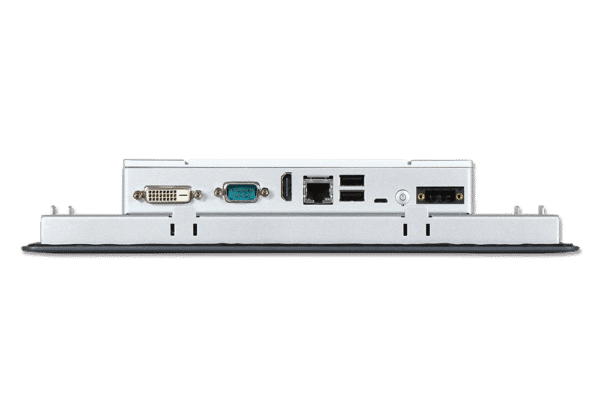

I/O Interface
Series Port 1 x RS-232/422/485
Display 1 x HDMI®
USB 2 x USB 2.0, 1 x USB OTG
Ethernet 1 x Gigabit Ethernet
Others 1x CAN 2.0B (DB9)

1 x SMA Antenna hole for WiFi/3G/4G LTE Solution

Expansion 1x Full-size Mini PCIe socket

1 x DVI-D Input, 4-bit DI / 4-bit DO, 1 x RS-232(Optional)

Dimesion(mm)(WxDxH) 286 x 196 x 49 mm

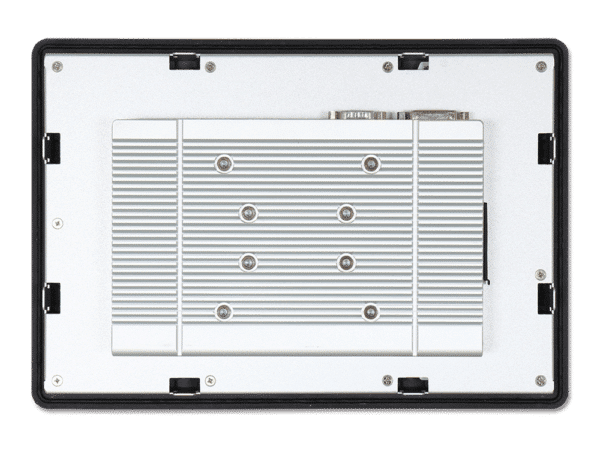

Mounting (mm) VESA Mount 25×50, 75×75 ; Panel Mount
Weight (Kg)(N) 1.6 KG
Weight (Kg)(N) 3.4 KG
Power Supply DC 12 ~ 24V input with 3-pin Terminal Block Connerctor
Consumption (Max) 25W
Consumption (Min) 6.2W
OP /Storage Temp -20°C~60°C / -30°C~80°C(20~90% non-condensing)
Vibration 1.0G(SD/eMMC) Power on & 2.16G, Packaged; 5~500Hz,IEC 60068-2-6
Shock 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
Drop Packaged with Carton 96.5cm (1-Corner, 3-Axis, 6-Face),ISTA 2A Standard
IP Protection IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certificate CE/FCC Class A
Ordering Guide
AL6-3224 (R).ATO.COMBO-S1020-Solo-512-8G. 10.1″ i.MX6 P-CAP HMI
AL6-3236 (R).ATO.COMBO-S1020-Quad-2G-8G. 10.1″ i.MX6 P-CAP HMI
