LYNX Series, Palm-Size Power and Innovation for Integrated IIoT Solutions Based on Intel Celeron® N3350
LLYNX-612D is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor. Target as PoE gateway with 3 PoE LAN ports, it can easily connect to multi cameras and PoE devices. It’s palm-sized dimension can fit in any small space constraints environment. With Microsoft Azure Edge device certification, it’s easy to deploy complex event processing, machine learning, image recognition, and other high value AI without writing it in-house.
| Model Name | LYNX-612D |
|---|---|
| Part Number | AS5-3585 |
| General | |
| Processor | Intel® Celeron® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP |
| Memory | 4GB onboard LPDDR4, 2400 MT/s, non-ECC; up to 8GB (Optional) |
| Storage | 32GB onboard eMMC 5.0 flash; up to 256GB (Optional) |
| Power | Input 12-30VDC (+/- 20%) |
| Operating System | Windows® 10 IoT Enterprise (64bit) Yocto v2.7 |
| Expansion | 1x M.2 Key E 2230 for wireless module |
| Other | TPM 2.0 onboard |

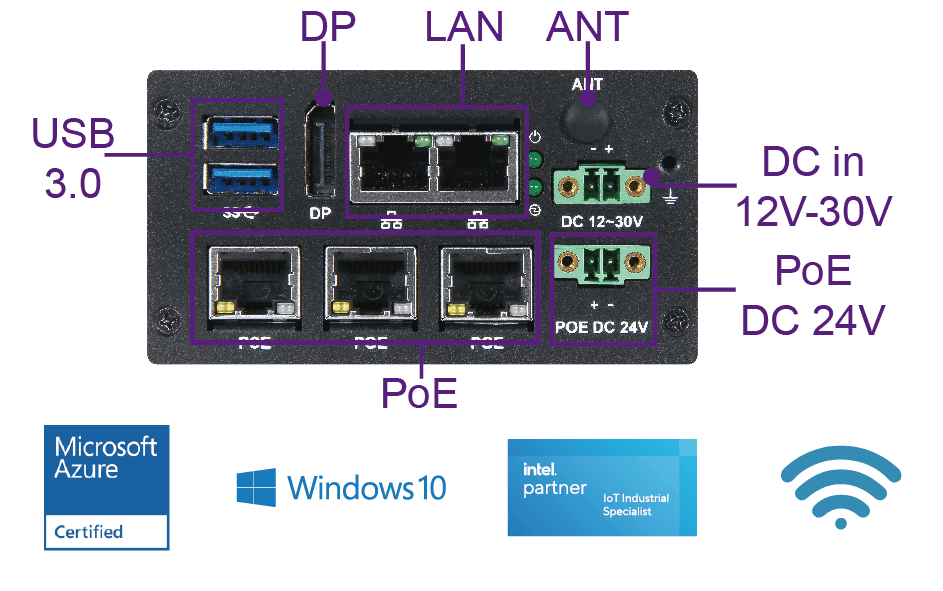

| Basic I/O Interface | |
| Power Connector | 1x 2-Pin Terminal Block |
| Ethernet | 2x 10/100/1000 GbE (Intel® I210) |
| USB | 2x USB 3.0 |
| Display | 1x DP v1.4 4096 x 2160 @ 60Hz |
| Extended I/O Interface | |
| Ethernet/POE | 3 x 802.3af PoE GbE (Power total 31W )10W, 3 port each / 15.4W, 2 port each (*) |
| Power connector | 1x 2-pin screw-type terminal block (24VDC) |
| Certification | |
| CE | EN 55032; EN 55024/EN 55035 |
| CE | EN 61000-6-4; EN 61000-6-2 |
| FCC | Part 15 Subpart Class A |
| LVD | EN 62368-1 |
| Storage Temperature | -40 °C ~ 85 °C |
| Operating Temperature | 0°C ~ 50°C |
| Permissible Humidity | 5-95% RH operating, non-condensing 5-95% RH storage, non-condensing |
| Vibration | 1G with DIN-rail mounting 5G with wall mounting (IEC/EN 60068-2-6) |
| Shock | 15G with DIN-rail mounting 50G with wall mounting (IEC/EN 60068-2-27) |
| Degree of Protection | IP 30 |
| Dimension | 100mm(W) x 53.5mm(H) x 92mm(D) |
| Weight | 0.53KG |
| Mounting | DIN-rail / Wall Mount |
| Power Adaptor | 2-pin terminal block connector to DC jack cable 60W AC to DC Power Adaptor via DC jack |
Palm-size power and innovation for integrated AIoT solutions based on Intel Celeron N3350 and certified by Microsoft Azure IoT Edge Device. LYNX Series provides a rich portfolio of ultra-small form factor IoT appliances that offer a variety of features including low power consumption connectivity and expansion, rich interfaces for data acquisition and server connection, ruggedized design, and industrial regulatory compliance. It’s one of the best AIoT solutions for you.
