LYNX-612E

LYNX-612E is a compact, fan-less and cable-less PC adopting low power Intel® Celeron® N3350 processor. With small form factor, DIN-rail mounting and wide voltage DC input, it can easily fit in industrial environment. Legacy RS-232 and RS-232/422/485 help communicate machine to machine; in the meantime, real-time data collected from manufacturing line will be sent to edge and cloud, which benefit factories to make optimal decisions.

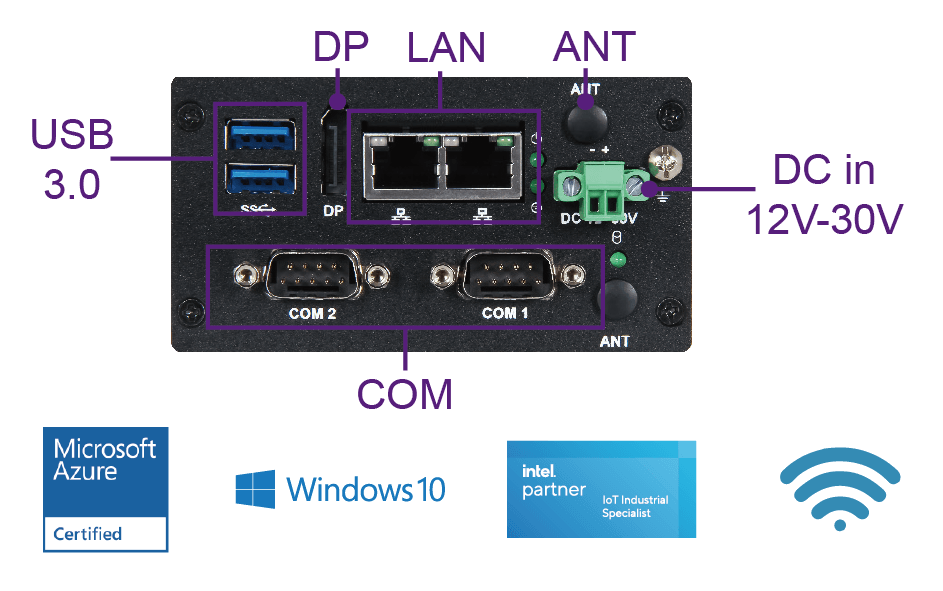

LYNX-612E IO

Specification

Model Name LYNX-612E
Part Number AS5-3569
General
Processor Intel® Celeron® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP
Memory 4GB onboard LPDDR4, 2400 MT/s, non-ECC;
up to 8GB (Optional)
Storage 32GB onboard eMMC 5.0 flash; up to 256GB (Optional)
1x M.2 Key B 2242 for storage
Power Input 12-30VDC (+/- 20%)
Operating System Windows® 10 IoT Enterprise (64bit)
Yocto v2.7
Expansion 1x M.2 Key E 2230 for wireless module
Other TPM 2.0 onboard
Basic I/O Interface
Power Connector 1x 2-Pin Terminal Block
Ethernet 2x 10/100/1000 GbE (Intel® I210)
USB 2x USB 3.0
Display 1x DP v1.4 4096 x 2160 @ 60Hz
Extended I/O Interface
COM/Console 1x RS-232 1x RS-232/422/485 (BIOS Configurable)
Expansion 1x M.2 Key B 2242 for storage
1x full-size Mini-PCIe
Certification
CE EN 55032; EN 55024/EN 55035
CE EN 61000-6-4; EN 61000-6-2
FCC Part 15 Subpart Class B
LVD EN 62368-1
Storage Temperature -40 °C ~ 85 °C
Operating Temperature 0°C ~ 50°C
Permissible Humidity 5-95% RH operating, non-condensing
5-95% RH storage, non-condensing
Vibration 1G with DIN-rail mounting
5G with wall mounting (IEC/EN 60068-2-6)
Shock 15G with DIN-rail mounting
50G with wall mounting (IEC/EN 60068-2-27)
Degree of Protection IP 30
Dimension 100mm(W) x 53.5mm(H) x 92mm(D)
Weight 0.53KG
Mounting DIN-rail / Wall Mount
Power Adaptor 2-pin terminal block connector to DC jack cable
60W AC to DC Power Adaptor via DC jack
Video Adaptor DP to VGA / DP to DVI-D
