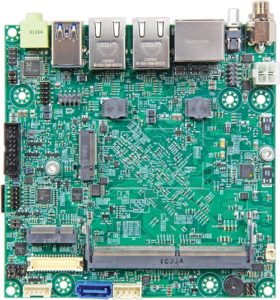

Intel Atom® x7000E Series SoC based NANO-ITX Board with Triple Display, 2.5GbE LAN, USB 3.2 Gen2, M.2, SATA III


  • Support low power Intel Atom® x7000E Series SoC and high performance Intel® i3 N-Series SoC
  • Up to 16GB DDR4 3200MT/s non-ECC SO-DIMM
  • Support multiple display via HDMI, DP, LVDS
  • High speed I/O with dual 2.5GbE and four USB 3.2
  • Multiple expansions with M.2 E Key and B Key
  • Support on board TPM 2.0


Play Video


NANO-6064 adopts the latest Intel Atom® x7000E/Intel Processor N-Series/Intel® Core™ i3 N-Series. The processor comes with improved performance and higher graphics capability.

NANO-6064 is suitable to build efficient solution for IoT applications, such as medical, retail, digital signage.


  • Intel Atom® x7000E Series Processor (up to 12W)
  • Intel® Processor N-Series
  • Intel® Core™ i3 N-Series Processor (up to 15W)
  • 1x non-ECC DDR4 3200MT/s SO-DIMM up to 16GB
  • Supports In-Band ECC
Storage Devices
  • 1x SATA III
  • 1x M.2 B Key 2280(SATA III)
  • 1x micro SD socket
Watchdog Timer Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs
Hardware Monitoring System monitor(Voltage, Fan Speed, Temperature)
Expansion Interface
  • 1x M.2 E Key 2230
  • 1x M.2 B Key 3052+2280 (share with M.2 2280 SATAIII socket)


  • HDA controller integrated in Intel® SoC
  • Realtek ALC897 HDA codec

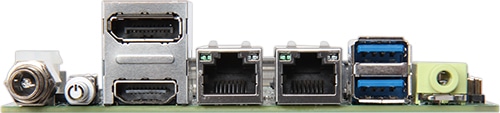

  • Audio jack on rear I/O (line-out)
  • Onboard pin header (line-in, line-out, mic-in)
  • 2x Intel® 2.5GbE Controller (I225-LM)
  • 2x RJ45 connectors on rear I/O
Serial Port 1x RS-232/422/485 port (selectable via BIOS)
  • 2x USB 3.2 Gen2 on rear I/O
  • 2x USB 3.2 Gen1 on board pin header
    (1x USB 3.2 Gen1 share with M.2 B key socket)
  • TPM 2.0 on board
  • 8x GPIO
  • Support Real-time Performance – Intel® TCC & TSN(only selected skus)


Graphic Controller Intel® UHD Graphics Gen12 with up to 32 EUs
Display Interface
  • LVDS: 1x LVDS on board connector (Dual channel, 24bit, 1920×1200 @60Hz)
  • HDMI®: 1x HDMI® port on rear I/O (HDMI® 2.0b, 4096×2160 @ 60Hz)
  • DP: 1x DP port on rear I/O (DP 1.4, 4096×2304 @ 60Hz)


Mechanical & Environment
Dimension 120mm(L) x 120mm(W), 4.72″(L) x 4.72″(W)
Power Supply DC 12V input
  • Operating temperature: 0°C~60°C
  • Storage Temperature: -40°C~85°C
  • Relative Humidity: 5~95%, non-condensing

Ordering Guide

AB1-3R90 (R).NANO-6064-x7211E
Nano-ITX ESB. Intel Alder Lake-N SoC.w/DDR4 SO-DIMM/LVDS/HDMI/DP/dual 2.5 GbE LAN/ micro SD
AB1-3R91 (R).NANO-6064-x7213E
Nano-ITX ESB. Intel Alder Lake-N SoC.w/DDR4 SO-DIMM/LVDS/HDMI®/DP/dual 2.5 GbE LAN/ micro SD
AB1-3R89 (R).NANO-6064-x7425E
Nano-ITX ESB. Intel Alder Lake-N SoC.w/DDR4 SO-DIMM/LVDS/HDMI/DP/dual 2.5 GbE LAN/ micro SD
AB1-3R12 (R).NANO-6064-N305
Nano-ITX ESB. Intel Alder Lake-N SoC.w/DDR4 SO-DIMM/LVDS/HDMI/DP/dual 2.5 GbE LAN/ micro SD
