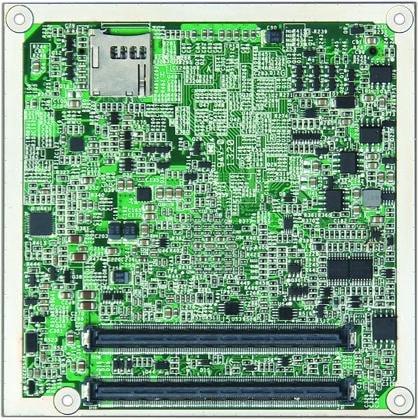

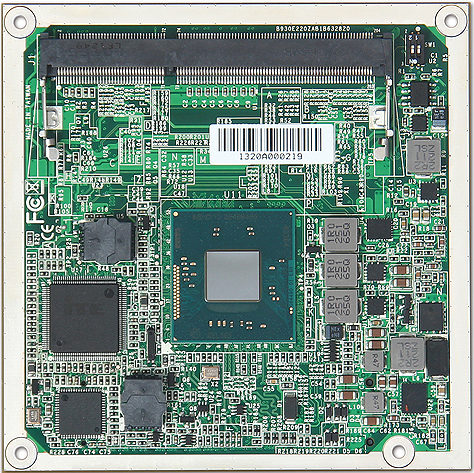

PCOM-B632VG

Intel® Atom® Bay trail series SoC based on Type 6 COMExpress® module with DDR3L 1x SD-DIMM Socket

Features

  • Intel® Atom® Processor E3800 processors
  • DDR3L SO-DIMM up to 4GB 1333 MT/s
  • Multiple Displays VGA, eDP, DP, HDMI®
  • Support Industrial temperture -40 °C to 85 °C
  • Support low power consumption(5 to 10W), USB 3.0, SD Card

Description

PCOM-B632VG, a type 6 compact COM Express® (95 x 95 mm) module which was based on Intel® Atom® Bay Trail E3800 series SoC. In this architecture, it could provide VGA, eDP and DP multiple displays, and expandability I/O interfaces, included 3x PCIe 2.0 x 1, 1x USB 3.0, 4x USB 2.0, 2x serial ports and 2x SATA II devices. With ultra low power consumption design(5 to 10W), wide-temp support, it could provide very energy saving solution to different market, such as retail, transportation and automation.

Specification

Specifications
Model Name PCOM-B632VG
Form Factor (mm) Compact (95 x 95mm)
COM Type Type 6
CPU/ Clock/ Cache Intel® Atom® E3845
Intel® Atom® E3827
Intel® Atom® E3826
Intel® Atom® E3825
Intel® Atom® E3815
1.33GHz up to 1.91GHz
1MB to 2MB cache
Chipset SoC
Graphic Controller Intel® HD Graphic Z3700
Memory DDR3L SO-DIMM up to 1333 MT/s
Non-ECC
Single Channel
Storage 2x SATA II
USB 1x USB 3.0
4x USB 2.0
PEG N/A
PCI Express 3x PCIe 2.0 x1
Ethernet I210IT
Audio High Definition Audio
Operating Temperature -40C° to 85°C
Carrier Board PCOM-C605 (Mini-ITX)
PCOM-C60B (ATX)

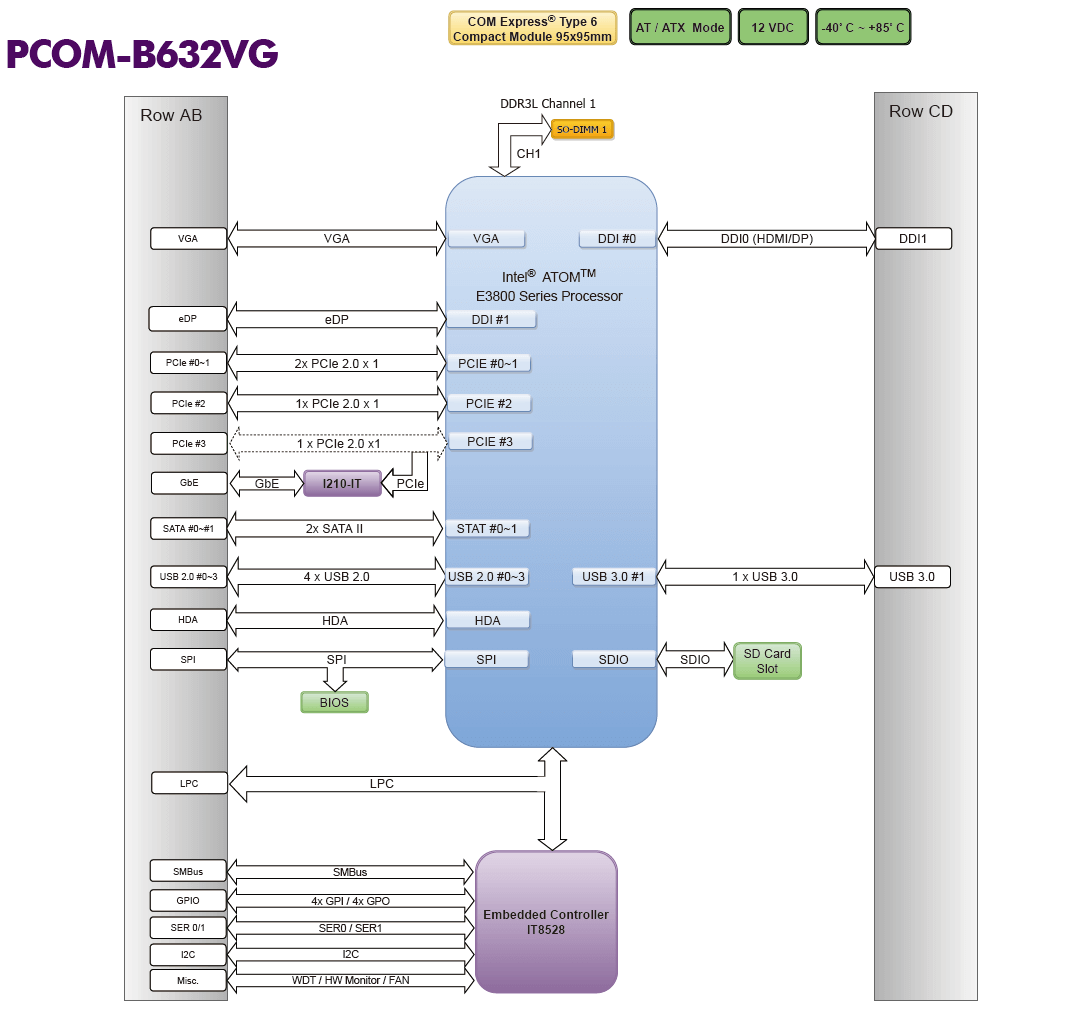

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B632VG-E3845 AB1-3A36 Available
PCOM-B632VG-E3827 AB1-3A33 Available
PCOM-B632VG-E3826 AB1-3A34 Available
PCOM-B632VG-E3825 AB1-3A35 Available
PCOM-B632VG-E3815 AB1-3A40 Available

Accessory

Accessory
Accessory Ordering P/N Status
Heat Sink B8308040 Available
Heat Spreader B8307650 Available
PCOM-C605(Mini-iTX Carrier Board) AB1-3998 Available
PCOM-C60B(ATX Carrier Board) AB1-3G22Z Contact us

Support

(Documents & Downloads)

  Catalog   PCOM-B632VG | Catalog 20211209   March 30, 2021
292 KB 3274 Downloads
      BIOS   BIOS_PCOM-B632VG_21116T00.zip | BIOS 21116T00   October 19, 2023

    PCOM-B632VG-ZPE-ASC-10G)( B2847000)

    3.75 MB 121 Downloads
      BIOS   BIOS_PCOM-B632VG_R100W8.zip | BIOS R100W8   August 22, 2023
    6.38 MB 132 Downloads
      BIOS   BIOS_PCOM-B632VG_21018T00.zip | BIOS 21018T00   June 2, 2023

    BIOS bin file

    4.59 MB 132 Downloads
      BIOS   BIOS_PCOM-B632VG_Update_21018T00_KeepDMI.zip | BIOS 21018T00   June 2, 2023

    Sync with AB1-3P36

    4.59 MB 127 Downloads
      BIOS   BIOS_PCOM-B632VG_R100W1_110413.zip | BIOS    November 4, 2014

    BIOS_PCOM-B632VG_R100W1_110413.zip

    4.44 MB 2229 Downloads
      BIOS   BIOS_R100W2_PCOM-B632VG_021314.zip | BIOS    February 2, 2014

    BIOS_R100W2_PCOM-B632VG_021314.zip

    6.30 MB 3258 Downloads
        EC   EC_PCOM-B632VG_R1W1_110413.zip | EC    November 4, 2020
      86.10 KB 922 Downloads
        EC   EC_R1.E2_PCOM-B632VG_021314.zip | EC    February 12, 2014

      EC_R1.E2_PCOM-B632VG_021314.zip

      90.06 KB 3238 Downloads
          Driver   PCOM-B632_Win7_32b_64b_IO_Drivers_Gold_v2_0_20140905.zip    May 3, 2021
        18.38 MB 570 Downloads
          Driver   PCOM-B632 TXE_Win7_8_8.1_1.1.0.1089_20140905.zip    May 3, 2021
        34.39 MB 628 Downloads
          Driver   PCOM-B632 WIN7 SetupUSB3_3.0.0.19_20140905.zip    May 3, 2021
        5.23 MB 653 Downloads
            User’s Manual   Manual_PCOM-B632VG_R0_11042013.zip | Manual    May 3, 2021

          PCOM-B632VG user’s manual

          3.25 MB 819 Downloads
            User’s Manual   Manual_PCOM-B632VG R1.2-20141027-1.pdf | Manual    May 3, 2021

          PCOM-B632VG user’s manual

          2.14 MB 690 Downloads
            User’s Manual   Manual_PCOM-B632VG R1.1-20140326.pdf | Manual    May 3, 2021

          PCOM-B632VG user’s manual

          1.96 MB 712 Downloads
            User’s Manual   Manual_PCOM-B632VG_R1.0.pdf | Manual    May 3, 2021

          PCOM-B632VG user’s manual

          1.41 MB 751 Downloads
            User’s Manual   Manual_PCOM-B632VG R1.4-20170112.pdf | Manual    January 12, 2017

          PCOM-B632VG user’s manual

          8.47 MB 926 Downloads
