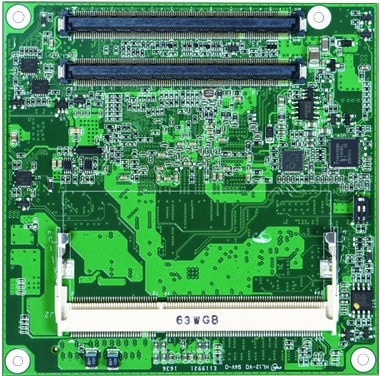

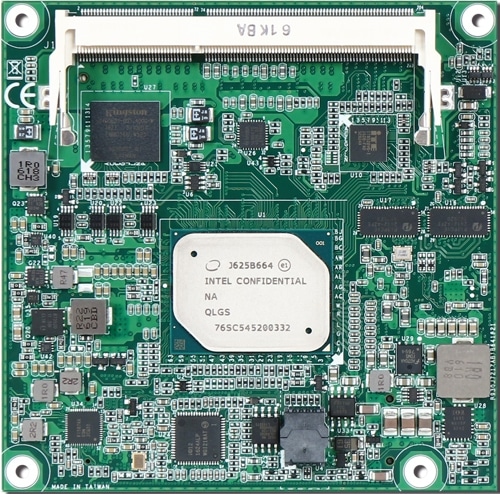

PCOM-B641VG

Intel® Atom® Apollo Lake series SoC based on Type 6 Compact COM-Express® module with 2x DDR3L SD-DIMM Socket

Features

  • Intel® Atom® Apollo Lake E3900 series processors
  • DDR3L SO-DIMM up to 16GB 1866 MT/s
  • Multiple Displays VGA, LVDS/eDP, DP, HDMI®
  • Support Industrial temperture -40°C to 85°C
  • Support low power consumption(6 to 12W), TPM 2.0

Description

PCOM-B641VG, a type 6 compact COM Express® (95 x 95 mm) module which based on Intel® Atom® Apollo Lake E3900 series SoC. In this architecture, it could provide VGA, LVDS, and high quantity HDMI®, eDP, DP with 4K resolution, and three independent displays. PCOM-B641VG also provides turbo mode up to 2.5GHz, including extended 4x PCIe 2.0 x 1, 3x USB 3.0, 8x USB 2.0, and 2x SATA III devices. With ultra low power consumption design(6 to 12W), wide-temp support, PCOM-B641VG could provide very energy saving and high effective performance. Portwell planned to promote PCOM-B641VG as vertical solution to aim in the different versatile applications, such as Automation, Military, Networking, Transportation and so on.

Specification

Specifications
Model Name PCOM-B641VG
Form Factor (mm) COM Express® Compact (95 x 95mm)
COM Type Type 6
CPU/ Clock/ Cache Intel® Atom® E3950
Intel® Atom® E3940
Intel® Atom® E3930
Intel® Atom® N4200
Intel® Atom® N3350
1.80 GHz to 2.40 GHz (Turbo)
2MB cache
Chipset SoC
Graphic Controller Intel® HD Graphics 505
Intel® HD Graphics 500
Memory DDR3L SO-DIMM up to 16GB 1866 MT/s
Non-ECC
Dual Channel
Storage 2x SATA III
USB 3x USB 3.0 8x USB 2.0(Option 1x OTG)
PEG N/A
PCI Express 4x PCIe 2.0 x 1
Ethernet I210IT
Audio High Definition Audio
Operating Temperature -40C° to 85°C
Carrier Board PCOM-C605 (Mini-ITX)
PCOM-C60B (ATX)

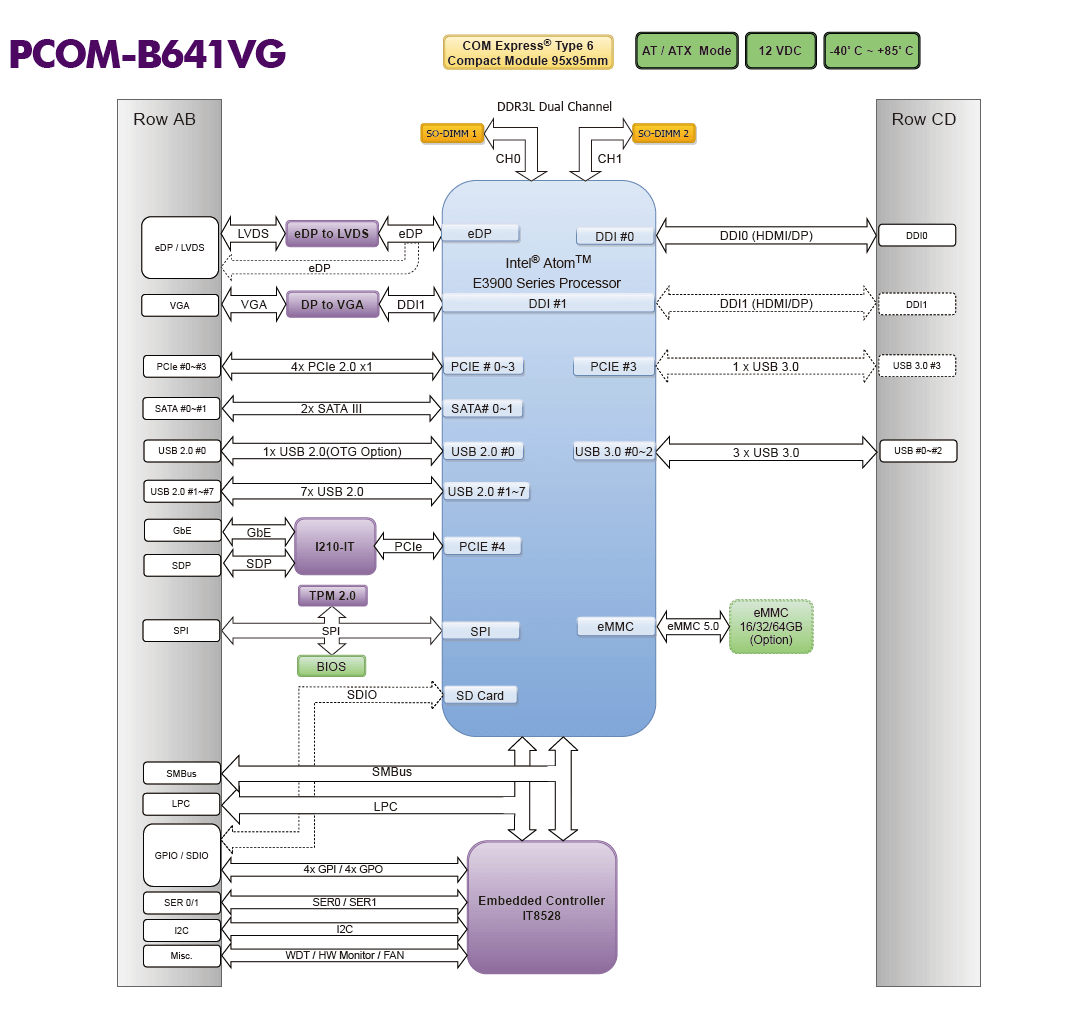

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B641-E3950 AB1-3F71 Available
PCOM-B641-E3940 AB1-3F39 Available
PCOM-B641-E3930 AB1-3F38 Available
PCOM-B641-N4200 AB1-3F28 Available
PCOM-B641-N3350 AB1-3F72 Available

Accessory

Accessory
Accessory Ordering P/N Status
Heat Sink (N-sku) B9971521 Available
Heat Sink (E-sku) B8308491 Available
Heat Spreader (N-sku) B8308911 Available
Heat Spreader (E-sku) B8308901 Available
PCOM-C605(Mini-ITX Carrier Board) AB1-3998 Available
PCOM-C60B(ATX Carrier Board) AB1-3G22Z Contact us

Documents & Downloads

  Catalog   PCOM-B641VG | Catalog 20211209   March 30, 2021

To fix graphic blank screen condition.

312 KB 4161 Downloads
      BIOS   BIOS_PCOM-B641_R100E1_Update.zip | BIOS R1.00.E1   July 6, 2023
    5.13 MB 169 Downloads
      BIOS   BIOS_PCOM-B641VG_R100E1_Update.zip | BIOS R1.00.E1   August 25, 2020

    To fix graphic blank screen condition.

    5.13 MB 902 Downloads
      BIOS   BIOS_PCOM-B641VG_R100E0_Update.zip | BIOS R1.00.E0   July 2, 2020

    MP BIOS

    5.13 MB 815 Downloads
      No downloads found!
          Driver   driver_PCOM-B641VG_Serial_IO_Win1064bit_30.100.1631.03.zip | Driver 30.100.1631.03   November 22, 2018

        Serial IO Driver for Windows 10 64bit

        3.04 MB 1002 Downloads
          Driver   driver_PCOM-B641VG_LAN_Wind1064bit_21.1.zip | Driver    November 22, 2018

        LAN Driver for Windows 10 64bit

        77.49 MB 1069 Downloads
          Driver   driver_PCOM-B641VG_Graphic_Wind1064bit_21.20.16.4550.zip | Driver 21.20.16.4550   November 22, 2018

        Graphic Driver for Windows 10 64bit

        237.93 MB 1028 Downloads
          Driver   driver_PCOM-B641VG_Audio_Win1064bit_279.zip | Driver 279   November 22, 2018

        Audio Driver for Windows 10 64bit

        124.80 MB 1004 Downloads
          Driver   driver_PCOM-B641VG_Chipset_Win1064bit_10.1.1.35.zip | Driver    November 22, 2018

        Chipset Driver for Windows 10 64bit

        2.56 MB 1057 Downloads
          Driver   Driver_PCOM-B641VG_TXE_Win1064bit_3.0.10.1129.zip | Driver 3.0.10.1129   November 22, 2018

        TXE Driver for Windows 10 64bit

        85.09 MB 1030 Downloads
            User's Manual   Manual_PCOM-B641VG_R1.3.pdf | Manual R1.3   October 26, 2023
          1.73 MB 68 Downloads
            User's Manual   Manual_PCOM-B641VG_R1.1.pdf | Manual R1.1   November 22, 2018

          PCOM-B641VG User’s Manual

          3.33 MB 949 Downloads
