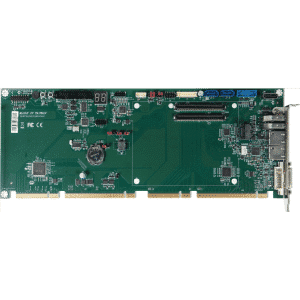

PCOM-C615

PCOM-C615 is PICMG 1.3 Full Size Form Factor Evaluation Carrier Board for COM Express® Revision 2.0 Type VI Module. PCOM-C615 follows standard PICMG 1.3 golden finger pin definition and let customer save system total cost for easily upgrading modules

Features

  • Supports four SATA III ports
  • Supports multiple display by LVDS, HDMI®, DP on board and DVI-I(DVI-D+VGA) on bracket(Choose either HDMI® or VGA by BIOS)
  • Rich I/O interfaces such as serial ports, USB, PCI

Description

Portwell PCOM-C615 is designed with PICMG 1.3 form factor with COM Express Type VI row connectors, suitable for evaluation testing of Portwell’s Type VI COM Express modules on PCIe, PEG, VGA/HDMI®, DVI, USB and SATA interface.

Specification

Specifications
Model Name PCOM-C615
Form Factor (mm) PICMG 1.3 (338.5 x 126.39mm)
COM Type Depends on Module
CPU/ Clock/ Cache Depends on Module
PCI Express 4x PCIe x1 or 1x PCIe x4 by different bios support (PCIe Gen3)
Ethernet 2x GbE
Sound N/A
Graphic Controller N/A
Carrier Board N/A

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-C615 ABI-3J53 Available

Support

(Documents & Downloads)

  Catalog   PCOM-C615 | Catalog Ver.221   March 30, 2021
612.29 KB 2604 Downloads
    No downloads found!
        User’s Manual   Manual_PCOM-C615_R0 | User’s Manual R0   May 3, 2021
      1.14 MB 770 Downloads
