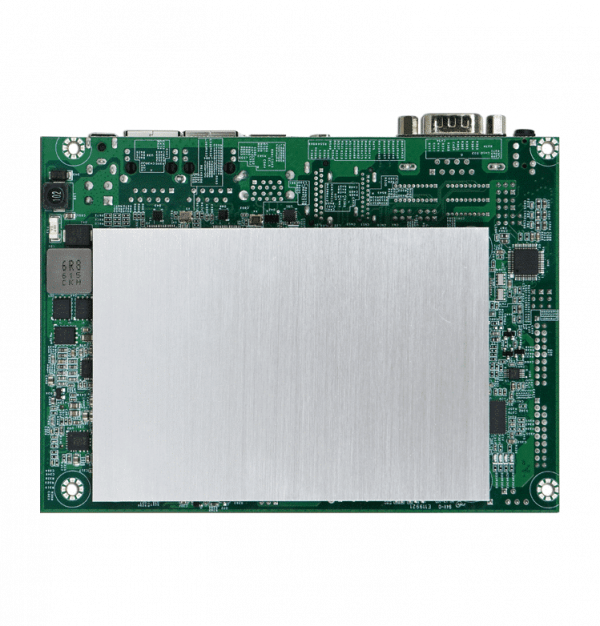

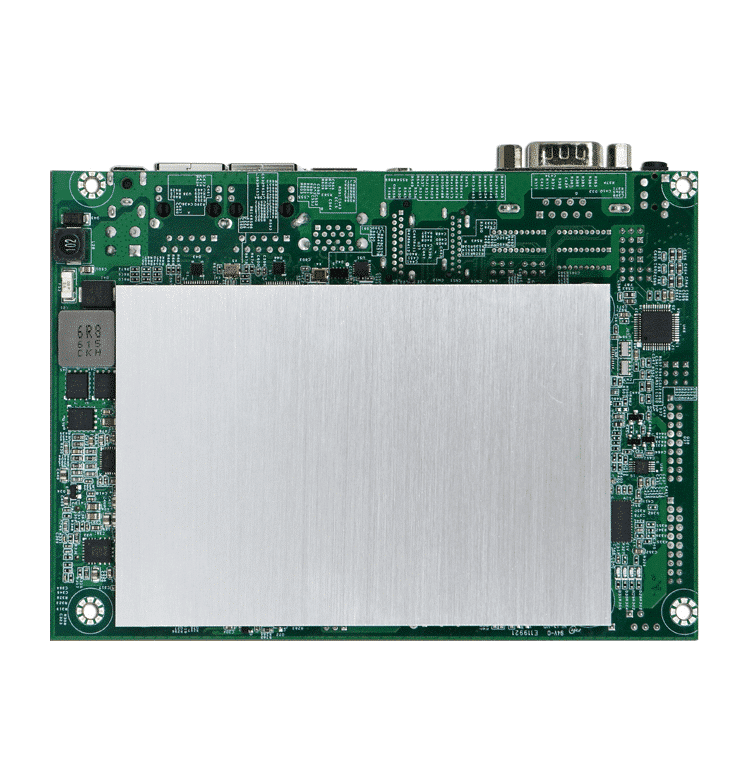

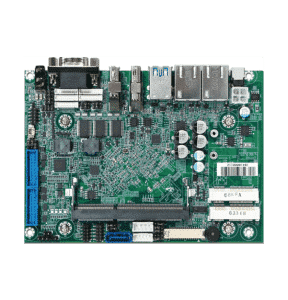

PEB-2773

Apollo Lake Atom^® Processor based 3.5’ embedded Board with DDR3L SDRAM, Gigabit Ethernet, 2x mini-PCIe sockets, 6x COM ports and 12~24V DC input

Features

Supports Intel^® Apollo Lake series processor
Supports DD3L-1866/1600 MT/s non-ECC SDRAM on one SO-DIMM slot, up to 8GB
Supports Triple displays including DP, HDMI^®, and Dual channel 24bit LVDS
Supports mini-PCIe / mSATA (2x mini- PCIe slots)
Supports 6x COM ports(REAR IO support RS-232/422/485)

Download

Description

PEB-2773 build with Intel^® Atom^® processor E3900 series. Not only does it operates with TDP under 12W for fan-less applications, but it also supports industrial temperature range from -40°C to 85°C and wide voltage of power input from 12V to 24V.

Specification

MODEL	PEB-2773
Form Factor	3.5″ Embedded
CPU	Intel^® Atom^® E3900 Family
Chipset	N/A
BIOS	AMI UEFI
Memory	1x DDR3L SO-DIMM up to 8GB
Expansion	2x mini-PCIe sockets
Display	DP/HDMI^®/LVDS
Audio	Realtek ALC892 HDA codec
LAN	2x GbE
Serial Port	1x RS-232/422/485 5x RS-232
USB	6x USB 3.0
Storage Devices	1x SATA
GPIO	8 bit
Others	N/A
Dimension	146 x 102mm

Ordering Guide

Ordering Guide
AB1-3E83	(R).PEB-2773. Intel^® Apollo Lake SoC on Board.EBC. w/DDR3L/DP/HDMI^®/GbE/COM/Audio/USB

Packing List

Packing List
One PEB-2773 Main board
One Installation CD
One SATA cable

Documents & Downloads

Catalog PEB-2773 | Datasheet 210530 March 30, 2021

Download

1.40 MB 3596 Downloads

BIOS BIOS_PEB-2773_R100E6.zip | BIOS R1.00 August 23, 2023

Download

9.48 MB 120 Downloads

BIOS BIOS_PEB-2773_R100E5_Updata.zip | BIOS R100E5 May 6, 2022

Download

BIOS_PEB-2773_R100E5_Update.zip

5.2 MB 2075 Downloads

BIOS BIOS_PEB-2773_R100E4_Update.zip | BIOS R1.00.E4 January 3, 2022

Download

10.1 MB 1846 Downloads

BIOS BIOS_PEB-2773_R100E3_Update.zip | BIOS R1.00.E3 February 19, 2021

Download

For E series 01. Base On "PEB-2773 Rev.:R1.00.E2 ( 07172019 )"
Add Sign on Message "Portwell, Inc. PEB-2773 BIOS Rev.:R1.00.E3 ( 02022020 )"
Add AN11606 1024x768 EDID Table
Support uCode M03506CA-1E.
Add PMC firmware 03.21.00. 06. Support Audio Codec ALC888

5.20 MB 988 Downloads

BIOS BIOS_PEB-2773-N series_R100E1_Update.zip | BIOS R1.00.E1 November 19, 2019

Download

For N series update BIOS codebase

5.20 MB 915 Downloads

BIOS BIOS_PEB-2773-Nseries_R100E1_Update.zip | BIOS R1.00.E1 November 19, 2019

Download

For N series update BIOS codebase

5.20 MB 894 Downloads

BIOS BIOS_PEB-2773_R1.00.E2_Update.zip | BIOS R1.00.E2 July 18, 2019

Download

For E series BIOS

5.20 MB 1024 Downloads

BIOS BIOS_PEB-2773_R100E1_Update.zip | BIOS R1.00.E1 June 11, 2019

Download

For E series BIOS

5.02 MB 1003 Downloads

BIOS BIOS_PEB-2773_R100E0_Update.zip | BIOS R1.00.E0 April 11, 2019

Download

For E series BIOS

4.99 MB 1104 Downloads

BIOS BIOS_NSKU_PEB-2773_R100E0_Update.zip | BIOS R1.00.E0 December 5, 2018

Download

For N series

5.01 MB 1054 Downloads

EC EC_PEB-2773_R04E00_Update.zip | EC R0.4E.00 May 3, 2021

Download

61.46 KB 1137 Downloads

Driver Driver_PEB-2773_chipset_Win10_64_10.1.1.34.zip | Driver 10.1.1.34 May 3, 2021

Download

2.56 MB 630 Downloads

Driver Driver_PEB-2773_TXE_Win10_64_3.0.10.1129.zip | Driver 3.0.10.1129 May 3, 2021

Download

84.90 MB 579 Downloads

Driver Driver_PEB-2773_LAN_PROWinx64_21.1.zip | Driver 21.1 May 3, 2021

Download

77.49 MB 557 Downloads

Driver Driver_PEB-2773_Audio_Win10_64_R279.zip | Driver R279 May 3, 2021

Download

124.85 MB 562 Downloads

Driver Driver_PEB-2773_SIO_Win10_64_30.100.1630.02.zip | Driver 30.100.1630.02 May 3, 2021

Download

2.63 MB 588 Downloads

Driver Driver_PEB-2773_Graphic_Win10_64_21.20.16.4526.zip | Driver 21.20.16.4526 May 3, 2021

Download

232.15 MB 524 Downloads

PEB-2773 User's Manual PEB-2773VGATM | User's Manual R1.7 R1.7 April 8, 2024

Download

4 MB 141 Downloads

No downloads found!

Application Note PCOM-B65A | Application Note 240710 August 15, 2024

Download

0.00 KB 201 Downloads

No downloads found!

Software Portwell Engineering Toolkit [PET] | Software 4.7.16 March 26, 2024

Download

A Universal API for Hardware Access in Both Linux and Windows

PET-supported OS: Windows 7, Windows 10, Ubuntu 18.04, and later, and CentOS 7 and later.
PET API sample code test application path:
- Windows PET_API sample code: PET_API, Windows, sample, TESTAP.cpp
- Linux PET_Utility: PET_API, Linux, x64, release, TESTAP.c

PET 4.7.16 Released
.................................................................................................................................
1. Update the product support list to include support for ANS-9A44S.
2. Update the GUI logo.
.................................................................................................................................

Supported products list: Portwell Engineering Toolkit Info

11.96 MB 461 Downloads

Software Software_NODE.X Agent_0.0.7.zip | Software 0.0.7 January 22, 2024

Download

20.54 MB 156 Downloads

Software Software_WEBS-45Hx_Series_20220426.zip | Software 20220426 December 6, 2022

Download

GPIO test

508.9 KB 1335 Downloads
