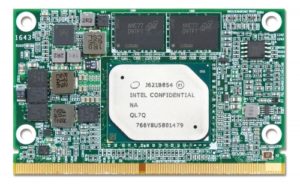

SMARC module by SMARC 2.0 based on Intel® Atom™ / Pentium® / Celeron® processors (Apollo Lake) with LPDDR4 SDRAM up to 8GB, 24bit LVDS, DP, HDMI®


  • Intel® Atom™ / Pentium® / Celeron® processors (“Apollo Lake”)
  • On Board LPDDR4 DRAM and up to 8GB
  • On Board eMMC 5.0 (Optional)
  • 24-bit LVDS, HDMI®, and DP output
  • Four PCI Express x1 lanes
  • Support two USB 3.0 and six USB 2.0


PSMC-M101 is designed withIntel® Atom™/ Pentium®/ Celeron® processors (“APOLLO LAKE”)  processors featured with higher graphic performance and wider memory bandwidth than the previous platform. Based on Intel Apollo Lake industrial grade processor support, industrial components selecting, and with wide-voltage input design adding on board, PSMC-M101 not only aims at various applications(i.e. automation, fire security, transportations), but is also set to support kinds of harsh environment with a stable power input.

Ordering Guide

Ordering Guide
AB7-3051Z (R). PSMC-M101-E3950-4G-8G. Atom E3950 Quad Core 2.0 GHz. SMARC Module/EC/LVDS
Contact us (R). PSMC-M101-N3350-4G-8G. Celeron N3350 Dual Core 2.4 GHz. SMARC Module/EC/LVDS
Contact us (R). PSMC-M101-N4200-4G-8G. Pentium N4200 Quad Core 2.5 GHz. SMARC Module/EC/LVDS
Contact us (R). PSMC-M101-Exxx-xG-xG. With chosen CPU, memory and eMMC


(Documents & Downloads)

  Catalog   PSMC-M101 | Catalog    March 30, 2021
1.01 MB 3455 Downloads
