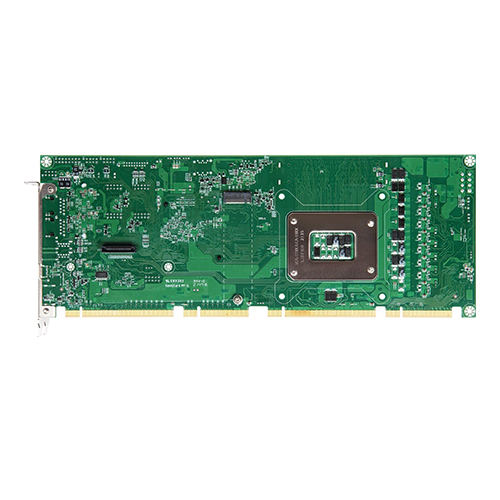

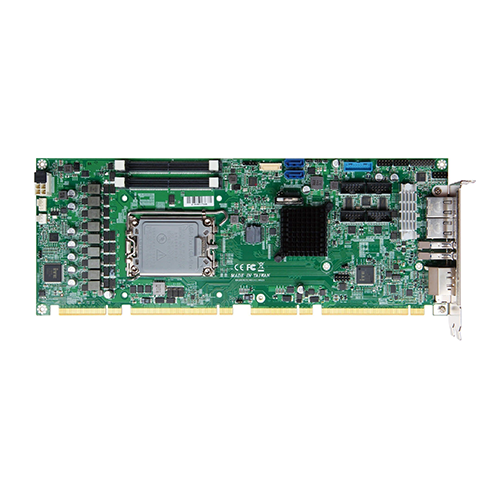

ROBO-8116G2AR-R

Intel® 12th/13th/14th Generation chipset 600 series with processor based on PICMG 1.3 SHB with DDR5 SDRAM,HDMI, DVI-D, DP, Dual Gigabit Ethernet, Audio and USB

Features

  • Supports Intel® 12th/13th/14th Generation Core processors Family in LGA 1700 package
  • Two SO-DIMM support DDR5 DRAM up to 96GB
  • Supports mutiple display by DVI-D ,DP and HDMI
  • High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • Support two USB 3.2 Gen2 and USB 3.2 Gen2x2 on REAR I/O
  • Support on board TPM2.0

Description

ROBO-8116G2AR-R is based on Intel® 600 series chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8116G2AR is suitable for Medical, Industrial automation, and Digital Signage application.

Specification

Specifications
General
MODEL ROBO-8116G2AR-R
Processor
  • Intel® 12th/13th/14th Generation Core
    processors
    family in LGA1700 package
  • DMI x4 Link : 16GT/s
  • Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal
    Monitoring,
    Trusted Execution and Speed Step Technology (depends on CPU sku)
Chipset Intel® R680E
BIOS AMI uEFI BIOS
Memory
  • Supports two DDR5 dual channel up to 96GB SO-DIMM sockets
  • Supports DDR5-5600 MT/s 1DPC 1R and DDR5-5200 MT/s 1DPC 2R SO-DIMM memory on all i9,i7 and select i5 SKUs
Storage Devices
  • 4x SATAIII drives (Dual ports via Backplane)
  • Supports RAID 0, 1, 5, 10
  • 1x M.2 Type M 2280 (on bottom side)
Watchdog Timer Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs
Hardware Monitoring System monitor(Voltage,Fan Speed and Temperature)
Expansion Interface
  • From CPU: 1x PCIe x16(Gen5) or 2x PCIe x8(Gen5) and 1x PCe x4(Gen4) setting (Gen5 up to 32
    GT/s)
  • From PCH: 1x PCIe x4 or 4x PCIe x1 by different bios support (Gen 3 up to 8.0 GT/s), 4x PCI
    devices at 32bit 33MHz
I/O INTERFACE
I/O INTERFACE
Super I/O ITE IT5121E-I
Audio
  • Intel® PCH built-in High Definition Audio up to 192-kHz 32-bit
  • Realtek ALC888S HDA codec, 7.1 channels one on board audio pin header
Ethernet
  • Dual Intel® WGI225LM Gigabit Ethernet controller
  • Dual 10BASE-T / 100BASE-TX / 1000BASE-T / 2500BASE-T Ethernet
  • PCI Express x1 interface based on Gigabit Ethernet
  • Dual RJ-45 connectors with two LED indicators
Serial Port
  • 2x RS-232 ports
  • 2x RS-232/422/485 ports selectable
  • LPC to COM port IC: Fintek F81216DG
USB
  • 4x USB 2.0 ports (through backplane)
  • 2x USB 3.2(Gen1) ports on board
  • 2x USB 3.2(Gen2) ports on bracket
  • 1x USB 3.2(Gen2 x2) type-C port on bracket
Keyboard & Mouse TDB
GPIO On board programmable 8-bit Digital I/Os
DISPLAY
DISPLAY
Graphic Controller Intel® Core™ i3/i5/i7/i9 processors integrated graphics engine Provides improved 3D
multimedia capabilities including Microsoft DirectX 12, OpenGL 4.5
Display Interface
  • Support independent triple display by DP on bracket: Resolution up to 4096×2160 @ 60Hz
  • DVI-D on bracket: up to 1920×1200 @ 60Hz
  • HDMI on board: up to 4096×2160 @ 30Hz
Mechanical & Environment
Mechanical & Environment
Dimension 338.5mm(L) x 126.39mm(W),13.33”(L) x 4.98”(W) PCB: 12 layers
Power Supply
  • Typical: +12V, +5V
  • Support ATX mode
Environment
  • Operation Temperature: 0°C to 60°C
  • Storage Temperature: -20°C to 80°C
  • Relative Humidity: 5~95%, non-condensing
Certification CE,FCC Class A
MTBF Over 100,000 hours at 40°C

Ordering Guide

Ordering Guide
AB1-3S31 (R).ROBO-8116G2AR-R.
PICMG 1.3(PCI-E+PCI).LGA1700.R680E PCH. Intel Xeon/Core i3 processors. SHB. w/DP/HDMI/DVI/Dual GbE/Audio/four COM ports(Raptor lake-s refresh)

Packing List

Packing List
Standard B6902932 SATA III cable
B8981980 PICMG SBC Handling and Installa
B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718.
CY-8A08006R.CHUAN YANG
Optional B6903090 USB 3.0 cable with bracket
B6902230 USB port cable with bracket
