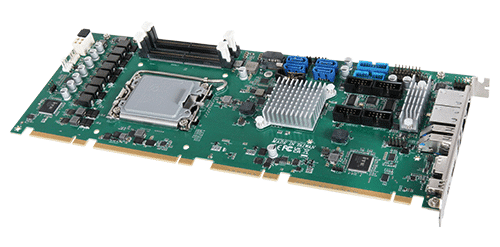

ROBO-8117G2AR

Features

Supports Intel^® 15^th Generation Core processors Family in LGA1851 package
Delivers up to 96GB maximum DDR5 6400 ECC SO-DIMM on two sockets
Supports mutiple display by mini-DP and dual HDMI®
High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
Support two USB 3.2 Gen2 on REAR I/O
Support on board TPM2.0

ROBO-8117G2AR is based on Intel^® 800 series chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8117G2AR is suitable for Medical, Industrial automation, and Digital Signage application.

Specification

General
Processor	Intel® 15th Gen Core™ Processors in LGA1851 package Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring Trusted Execution and Speed Step Technology (depends on CPU SKU)
Chipset	Intel® W880
BIOS	AMI UEFI BIOS
Memory	Supports up to 96GB DDR5 6400 SDRAM on two 262-pin SODIMM sockets, Supports ECC
Storage Devices	6x SATAIII drives (Dual ports via Backplane) Supports RAID 0, 1, 5, 10 1x M.2 Type M 2280 (on bottom side)
Watchdog Timer	Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs
Hardware Monitoring	System monitor (Voltage, Fan Speed and Temperature)
Expansion Interface	From CPU: 1x PCIe x16(Gen5) or 2x PCIe x8(Gen5) and 1x PCIe x4(Gen4) setting (Gen5 up to 32 GT/s) From PCH: 1x PCIe x4 or 4x PCIe x1 by different BIOS support (Gen 4 up to 16 GT/s), 4x PCI devices at 32bit 33MHz

I/O Interface
Super I/O	ITE IT5121E-I
Audio	Intel® PCH built-in High Definition Audio up to 192-kHz 32-bit Realtek ALC888S HDA codec, 7.1 channels one on-board audio pin header
Ethernet	Dual Intel® WGI226LM Gigabit Ethernet controller Dual 10BASE-T / 100BASE-TX / 1000BASE-T / 2500BASE-T Ethernet PCI Express x1 interface based on Gigabit Ethernet Dual RJ-45 connectors with two LED indicators
Serial Port	2x RS-232 ports 2x RS-232/422/485 ports selectable LPC to COM port IC: Fintek F81216E
USB	4x USB 2.0 ports on board 4x USB 2.0 ports (through backplane) 2x USB 3.2(Gen2) ports on bracket 4x USB 3.2(Gen2) ports on board
Keyboard & Mouse	TBD
GPIO	On board programmable 8-bit Digital I/Os

Display
Graphic Controller	Graphic with Xe LPG architecture, up to 4Xe Graphics Engines
Display Interface	Support independent triple display by mini-DP on bracket: Resolution up to 7680 x 4320 @ 60Hz HDMI on bracket: Resolution up to 7680 x 4320 @ 60Hz HDMI on board: Resolution up to 7680 x 4320 @ 60Hz

Mechanical & Environment
Dimension	338.5mm(L) x 126.39mm(W), 13.33”(L) x 4.98”(W)
Power Supply	Typical: +12V, +5V, Support ATX mode
Environment	Operation Temperature: 0°C to 60°C Storage Temperature: -20°C to 80°C Relative Humidity: 5~95%, non-condensing
Certification	CE, FCC Class A
MTBF	Over 100,000 hours at 40°C

Ordering Guide

AB1-3T07

(R).ROBO-8117G2AR
PICMG 1.3 (PCI-E+PCI). LGA1851. W880 PCH. Intel Core Ultra processors. SHB. w/ miniDP/HDMI/Dual GbE/Audio/four COM ports

Packing List

Standard	B6902932 SATA III cable TBD Installa B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG
Optional	B6903090 USB 3.0 cable with bracket B6902230 USB port cable with bracket
