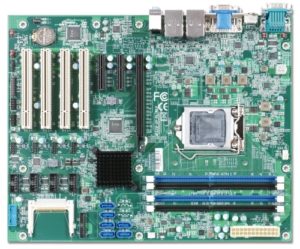

RUBY-D718VG2AR

Leading Desktop Intel® 7th and 6th Gen Core™ processors (former Kaby Lake/ Skylake) ATX with DDR4 SDRAM, Triple Displays, 2x GbE LAN ports, 6x COM Ports

Features

  • Intel® 7th and 6th Gen Core™ Processors support
  • 4x Long-DIMMs support DDR4 ECC(C236) / Non-ECC(Q170) SDRAM up to 64GB
  • 1x PCIe x16, 2x PCIe x4, 4x PCI slots

Description

RUBY-D718VG2AR is based on Intel® Q170/ C236 chipset and desktop processor SKU like Intel® 7th and 6th Gen Core™ i3, i5 and i7 Processors. Built with PCI and PCIe expansions, it’s suitable for Medical, Industrial automation, and Digital Signage application.

Specification

Specifications
MODEL RUBY-D718VG2AR
Form Factor ATX
CPU Intel® 7th and 6th Gen Core™ Processors CPU in LGA1151 package
Chipset Intel® Q170/H110/C236
BIOS AMI UEFI
Memory 4x DDR4 DIMM up to 64GB
Expansion 4x PCI slots
1x PCIe x16 slot
2x PCIe x4 slots
Display VGA/DVI-D/HDMI®
Audio Realtek ALC886 HDA codec
LAN 2x GbE
Serial Port 1x RS-232/422/485 5x RS-232
USB 6x USB3.0
8x USB2.0
Storage Devices 6x SATA III (C236 supports 8x SATA III)
GPIO 8 bit
Others PS/2 KB & MS
Dimension 304.8 x 243.8mm

Ordering Guide

Ordering Guide
AB1-3D29 (R).RUBY-D718VG2AR
ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI®/DVI/Dual GbE/COM/Audio/USB
AB1-3D77 (R).RUBY-D718VG2AR-C236
ATX.IMB.LGA1151.CPU.C236.DDR4/VGA/ HDMI®/DVI/Dual GbE/COM/Audio/USB
AB1-3G14 (R).RUBY-D718VG2AR-kBL
ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI®/DVI/Dual GbE/COM/Audio/USB
AB1-3G15 (R).RUBY-D718VG2AR-C236-kBL
ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI®/DVI/Dual GbE/COM/Audio/USB

Packing List

Packing List
One RUBY-D718VG2AR ATX Industrial Main Board
One Installation DVD
One SATA III cable
One I/O shield

Support

(Documents & Downloads)

  Catalog   RUBY-D718VG2AR | Catalog    March 30, 2021
1.83 MB 3487 Downloads
      BIOS   BIOS_RUBY-D718VG2AR-C236_R1_00_E13.zip | BIOS R1.00.E13   July 31, 2023
    14.43 MB 135 Downloads
      BIOS   BIOS_RUBY-D718VG2AR_R1_00_E13.zip | BIOS R1.00.E13   July 31, 2023
    14.57 MB 150 Downloads
      BIOS   BIOS_RUBY-D718VG2AR-KBL_R1_00_E9.zip | BIOS R1.00.E9   July 31, 2023
    14.59 MB 105 Downloads
      BIOS   BIOS_RUBY-D718-Q170-KBL_R100E9_Update.zip | BIOS R100E9   June 8, 2023

    Optimization SIOTEST for CPU speed issue

    14.6 MB 187 Downloads
      BIOS   BIOS_RUBY-D718VG2AR-Q170_R100E10_Update.zip | BIOS R1.00.E10   January 24, 2022

    01. Base On “Portwell, Inc. RUBY-D718VG2AR-Q170 BIOS Rev.:R1.00.E9 ( 06152021 )”
    02. Remove Audio ALC662
    03. Support Audio ALC897

    7.72 MB 1792 Downloads
      BIOS   BIOS_RUBY-D718VG2AR-Q170-KBL_R100E7_Update | BIOS R100E7   November 12, 2021

    BIOS Update

    7.72 MB 2008 Downloads
      BIOS   BIOS_RUBY-D718VG2AR-C236-KBL_R100E7_Update | BIOS R100E7   November 12, 2021

    BIOS Update

    7.64 MB 1867 Downloads
      BIOS   BIOS_RUBY-D718VG2AR-C236-KBL_R100E9_Update | BIOS R1.00.E9   November 9, 2021

    Optimization SIOTEST for CPU speed issue

    14.44 MB 1517 Downloads
      BIOS   BIOS_RUBY-D718VG2AR-C236-KBL_R100E6_Update | BIOS R1.00.E6   June 22, 2021

    BIOS Version: Portwell, Inc. RUBY-D718VG2AR-C236-KBL BIOS Rev.:R1.00.E6 ( 06152021 )

    7.64 MB 2361 Downloads
      BIOS   BIOS_RUBY-D718VG2AR-Q170_R100E9_Update | BIOS R1.00.E9   June 22, 2021

    BIOS Version: Portwell, Inc. RUBY-D718VG2AR-Q170 BIOS Rev.:R1.00.E9 ( 06152021 )

    7.72 MB 2326 Downloads
      Driver   Driver_RUBY-D718VG2AR_Ethernet.zip | Driver    April 29, 2016
    185.47 MB 1272 Downloads
      Driver   Driver_RUBY-D718VG2AR_ME.zip | Driver    April 29, 2016
    21.10 MB 1400 Downloads
      Driver   Driver_RUBY-D718VG2AR_SerialIO.zip | Driver    April 29, 2016
    3.49 MB 1404 Downloads
      Driver   Driver_RUBY-D718VG2AR_XHCI.zip | Driver    April 29, 2016
    3.15 MB 1330 Downloads
      Driver   Driver_RUBY-D718VG2AR_Chipset.zip | Driver    April 29, 2016
    2.59 MB 1391 Downloads
        User’s Manual   Manual_RUBY-D718VG2AR_V1.1_20170120.pdf | Manual 1.1   May 3, 2021

      User’s Manual

      7.87 MB 740 Downloads
        User’s Manual   Manual_RUBY-D718VG2AR_R1.3.pdf | Manual 1.3   May 3, 2021

      User’s Manual

      3.40 MB 634 Downloads
        User’s Manual   Manual_RUBY-D718VG2AR_R10.pdf | Manual 10   May 3, 2021

      User’s Manual

      3.22 MB 617 Downloads
        User’s Manual   Manual_RUBY-D718VG2AR_R1.2.pdf | Manual 1.2   May 3, 2021

      User’s Manual

      3.20 MB 627 Downloads
        User’s Manual   Manual_RUBY-D718VG2AR_1.3.pdf | Manual 1.3   May 3, 2021

      User’s Manual

      3.20 MB 647 Downloads
          Software   Portwell Engineering Toolkit [PET] 4.7.12 | Software 4.7.12   March 26, 2024

        A Universal API for Hardware Access in Both Linux and Windows

        • PET-supported OS: Windows 7, Windows 10, Ubuntu 18.04, and later, and CentOS 7 and later.
        • PET API sample code test application path:
          • Windows PET_API sample code: PET_API, Windows, sample, TESTAP.cpp
          • Linux PET_Utility: PET_API, Linux, x64, release, TESTAP.c

        Supported products list:

        Series Models
        AMDY AMDY-7002
        ANSB ANSB-7A44E
        CEKL CEKL-XXXX
        KBB KBB-212E
        KUBE KUBE-2110
        Kuber Kuber-2000, Kuber-212
        MEDB MEDB-1002, MEDB-1004, MEDB-5180, MEDB-51A0, MEDB-6060, MEDB-6070
        MEDM MEDM-6180, MEDM-B641
        NANO NANO-5050, NANO-6040, NANO-6050, NANO-6051, NANO-6060, NANO-6062, NANO-6063, NANO-6064, NANO-8044
        PAB PAB-1001
        PCOM PCOM-B217, PCOM-B217J, PCOM-B218, PCOM-B219, PCOM-B219VG-INSYS, PCOM-B21A, PCOM-B630, PCOM-B632, PCOM-B633, PCOM-B634, PCOM-B635, PCOM-B636, PCOM-B637, PCOM-B638, PCOM-B638VG-8801, PCOM-B638VG-8802, PCOM-B639, PCOM-B641. PCOM-B645, PCOM-B651, PCOM-B652, PCOM-B653, PCOM-B654, PCOM-B655, PCOM-B655VGL-J. PCOM-B656, PCOM-B657, PCOM-B658, PCOM-B659, PCOM-B700, PCOM-B701, PCOM-B702, PCOM-B705, PCOM-B706, PCOM-B800, PCOM-B880, PCOM-B8800, PCOM-BA00, PCOM-BA01, PCOM-BA02
        PEB PEB-2131. PEB-2131C, PEB-2133, PEB-2737, PEB-2738I, PEB-2739I, PEB-2771, PEB-2772, PEB-2773, PEB-2781, PEB-5731, PEB-9782, PEB-99A3, PEB-99A4, PEB-99A5, PEB-99A7, PEB-99A8
        PF PF-8021
        PGB PGB-5120S
        PICO PICO-6260
        PNS PNS-9730
        PQ7 PQ7-M104, PQ7-M105, PQ7-M106, PQ7-M107, PQ7-M108
        PSMC PSMC-C921, PSMC-M1011
        PT PT-D711
        PX1 PX1-C415, PX1-C441
        ROBO ROBO-6911, ROBO-6912, ROBO-8110, ROBO-8111, ROBO-8112, ROBO-8113, ROBO-8114, ROBO-8115, ROBO-8116, ROBO-8210, ROBO-8779, ROBO-8780, ROBO-9910
        RUBY RUBY-D712, RUBY-D714, RUBY-D716, RUBY-D718, RUBY-D720, RUBY-D812-Q470E, RUBY-D813, RUBY-PB6511, RUBY-SQ1703
        SBC SBC-C430
        WADE WADE-7220, WADE-8011, WADE-8012, WADE-8013, WADE-8015, WADE-8016, WADE-8017, WADE-8020, WADE-8022, WADE-8046, WADE-8066, WADE-8067, WADE-8068, WADE-8070, WADE-8071, WADE-8072, WADE-8075, WADE-8077, WADE-8078, WADE-8079, WADE-8132, WADE-8170, WADE-8173, WADE-8211, WADE-8212, WADE-8321, WADE-PQ7712, WADE-SQ1705
        WEBS WEBS-2190, WEBS-5481, WEBS-85HX, WEBS-89I0
        11.96 MB 96 Downloads
