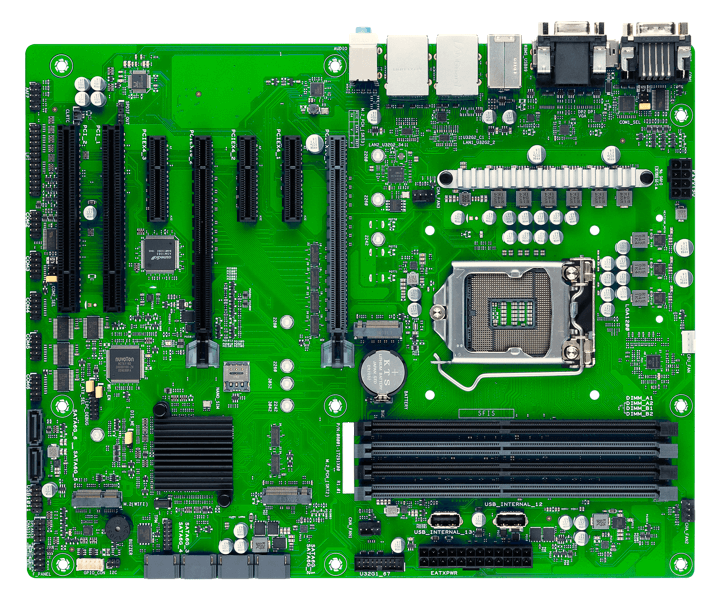

RUBY-D812-Q470E

Support Desktop In Intel® 10th Gen Core™ Processors ATX with DDR4 Long- DIMM up to 128Gb , VGA 2x DP port, HDMI® ,Dual GbE LAN, Six COM Ports

Features

  • Intel® 10th Gen Core™ Processors support
  • Four Long-DIMM suppo rt DDR4 Non-ECC DRAM up to 128GB
  • Support dual Ethernet, 6x COM Ports, 6x USB 3.2 Ports , 6x SATA III Ports and Audio
  • Two PCIe x16 (1x PCIe x8 signal), Three PCIe x4 slots(2x PCIe x4, 1x PCIe x2), two PCI slot, one M.2 (Type B), one M.2 (Key E) for Wireless, one M.2 (Key M) for SSD

Description

RUBY -D812 is based on Intel® Q470E chipset and Desktop processors including Intel® 10th Gen™ Core i3/i5/i7 SKU. This board supports DDR4 , PCIe 4.0, and SATAIII. Those features help you to build high performance and stabile system.

Specification

Specifications
MODEL RUBY-D812-Q470E
Form Factor ATX
CPU Intel® 10th Gen Core™ Processors CPU in LGA1200 package
Chipset Intel® Q470
BIOS AMI UEFI
Memory 4 x DDR4 Long-DIMM up to 128GB
Expansion 2x PCIe x16 (1 x PCIe x8 signal) ,3x PCIe x4 slots(2x PCIe x4, 1x PCIe x2 signal)
Display VGA/Dual DP/HDMI®
Audio Realtek ALC887 HDA codec
LAN 2x GbE
Serial Port 2x RS232/422/485 port one on REAR I/O , one on board header
4x RS232 port on pin header
USB 4x USB3.2 (Gen2) on rear I/O(3x Type A + 1x Type C)
2x USB3.2(Gen1) on pin header
2x USB2.0 on pin header
2x vertical connectors on board
Storage Devices 6x SATAIII ports(port1 /port2 shared with M.2 Key M)
GPIO 8 bit
Others N/A
Dimension 304.8 x 243.8mm

Ordering Guide

Ordering Guide
AB1-3 60 (R).RUBY-D812-Q470E
ATX IMB.LGA1200 Q470E. w/ DDR4 /VGA/Dual DP/HDMI® Dual GbE/COM/Audio/USB

Packing List

Packing List
One R UBY-D812 motherboard
One I/O shield
One SATA Cable
One CPU coolor bracket
