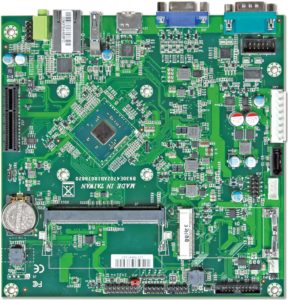

WADE-8078 is the first Portwell off-the-shelf Mini-ITX embedded board product based on the Intel® Atom™ processor E3800 product family with memory and PCI Express controller integrated to support one-channel DDR3L memory and PCI Express 2.0 lanes. Portwell has taken advantage of such technology to furnish a series of products that meets multiple industrial requirements for cost effectiveness, reliable performance and a high level of data integrity and uptime.
| CPU | Intel Atom® Processor E3827 (2 x 1.75 GHz, 1 MB L2, 8 W) Intel Atom® Processor E3815 (1 x 1.46 GHz, 512 KB L2, 5 W) Intel Atom® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W) |
| Format | Mini-ITX |
| Chipset | SoC (System-On-Chip) |
| DRAM | Up to 4GB DDR3L ECC 1066/1333 SDRAM on one 204pin SODIMM |
| Graphic Controller | Intel® HD Graphics 4600 supports DirectX11, OpenGL 4.0, OpenGL 3.2, Video decode hardware acceleration supports for H.264, MPEG2, MVC, VC-1, WMV9 and VP8 formats |
| Display Interface | VGA resolution up to 2560×1536@24bpp, HDMI® resolution up to 1920×1080@24bpp |
| Storage | 1x SATA II, 1x CFEX, 1x Mini-PCIe |
| Network | On board Intel I210AT |
| Expansion | PCIe x4 slot (with PCIe x2 Lanes) |
| Serial Interface | 1x RS232/424/485 Selectable port on rear I/O |
| USB | 2x USB2.0 ports on board, 1x USB3.0 ports on rear I/O |
| Audio | Realtek ALC892 supports 5.1 Channels, Audio Jack Line out on board |
| Miscellaneous | 8bit congfigurable GPIO, controlled by embedded controller |
| Power from W | ATX (support non-5V satdby) |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -20~80˚C |
| Dimensions | 170mm(L) x 170mm(W); 6.69″(L) x 6.69″(W) |
| AB1-3A41 | (R).WADE-8078- E3845 Mini-ITX ESB.Intel® Bay Trail(Vallyview-I QC 1.9GHz processor) on Board .w/DDR3L SODIMM/VGA/HDMI®/GbE Lan/COM/Audio/USB |
| AB1-3A42 | (R).WADE-8078- E3827 Mini-ITX ESB.Intel® Bay Trail(Vallyview-I DC 1.75GHz processor) on Board .w/DDR3L SODIMM/VGA/HDMI®/GbE Lan/COM/Audio/USB |
| AB1-3A43 | (R).WADE-8078- E3815 Mini-ITX ESB.Intel® Bay Trail(Vallyview-I SC 1.46GHz processor) on Board .w/DDR3L SODIMM/VGA/HDMI®/GbE Lan/COM/Audio/USB |
| One WADE-8078 Mini-ITX Main Board |
| One Passive Heat Spreader |
| One Installation CD |
