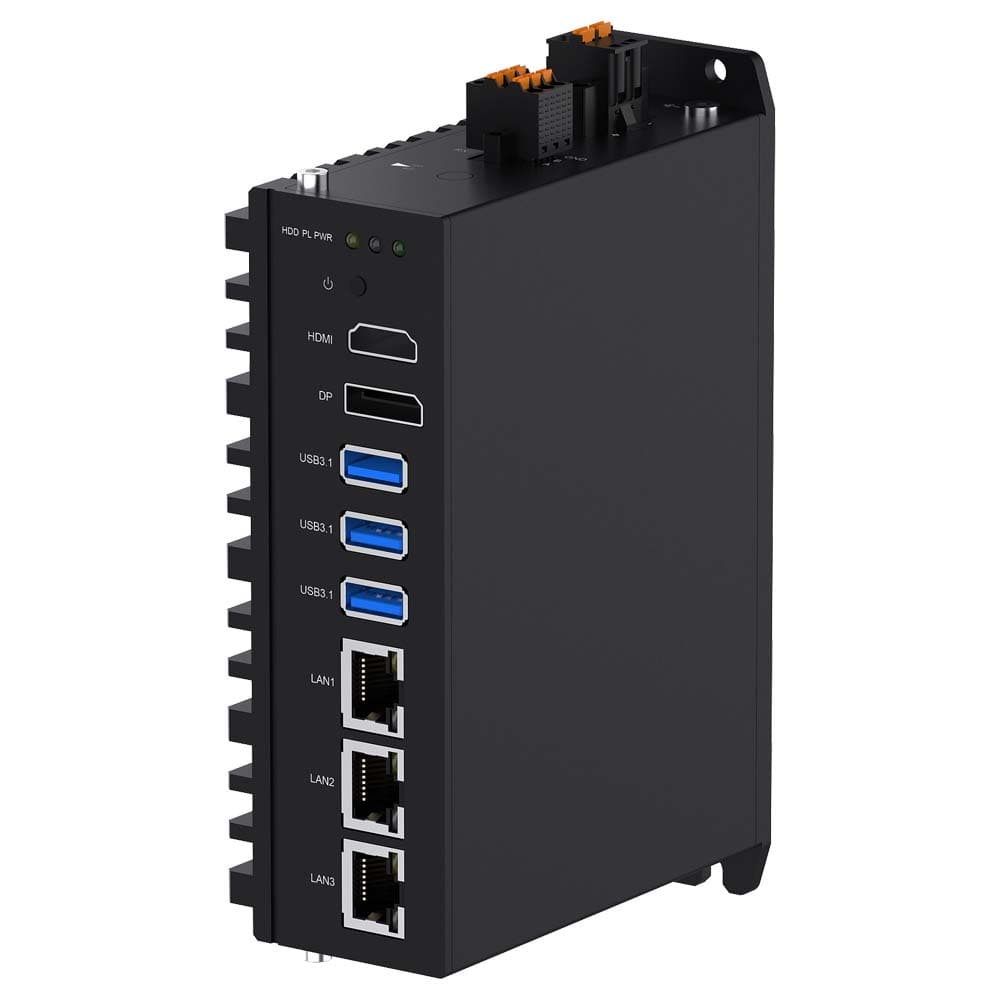

WEBS-89I0

Embedded Rugged Fan-less System with Intel® Celeron® WEBS-89I0 J6412 SoC based proprietary board.

Features

  • Fanless platform to support wide operating temperature -20 ~ 60°C with Intel® Celeron® J6412 SoC
  • 1x SO-DIMM DDR4-3200MHz up to 32GB
  • 3x RJ45 GbE
  • 1x RS-232 and 1x RS-485 supported
  • 1x M.2 2242 for SSD and 1x miniPCIe for Wi-Fi/4G options

Description

Built with Intel® Celeron® J6412, the quad-core processor, low-power, and cost-effective features make DIN-Rail Embedded System WEBS-89i0 a superior platform for applications in kiosk, digital signage, in-vehicle mobile video surveillance, medical, and the harsh environments of factory automation.

WEBS-89I0 DIN-Rail Embedded System Key Features

  • Compact, Fanless, Wide-Temp Design

    – Saves space, improves reliability, enables silent operation, and adapts to harsh industrial environments.​

  • Three Network Ports – 3GbE

    – Meets multi-network segment requirements of industrial control, provides bandwidth redundancy and overall traffic needs.​

  • Dual HD Display

    – Improves multitasking efficiency and workflows, suitable for diverse applications.​

  • Rich Wireless Expandability

    – Supports 5G and Wi-Fi 6 for high-speed and stable wireless connections to meet current and future device requirements.

Specification

 General
CPU Intel® Celeron® J6412
BIOS AMI uEFI BIOS
Memory 1x non-ECC DDR4-3200MHz SO-DIMM up to 32GB
Storage 1x M.2 2242 SSD
Watchdog Timer 1~255 levels programmable Watchdog Timer
Expansion 1x Full-size miniPCIe slot with SIM card holder (USB signal)

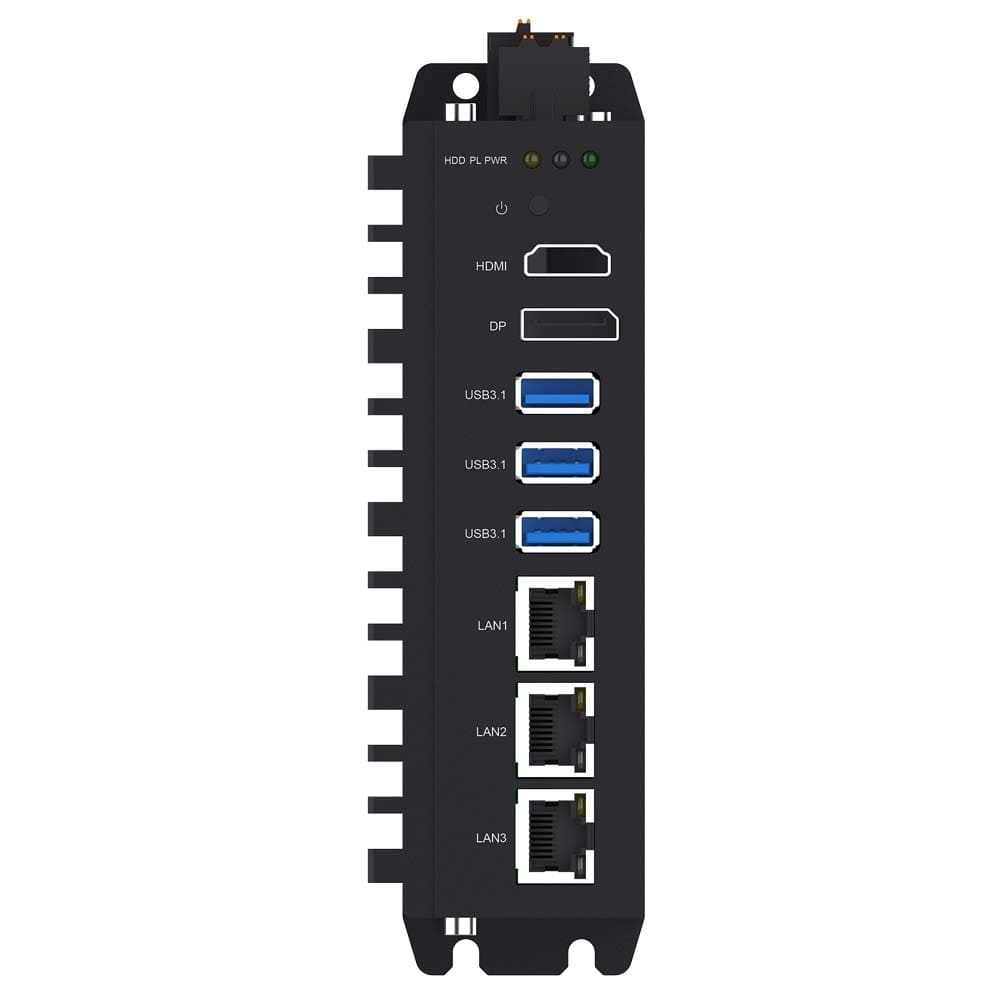

External I/O

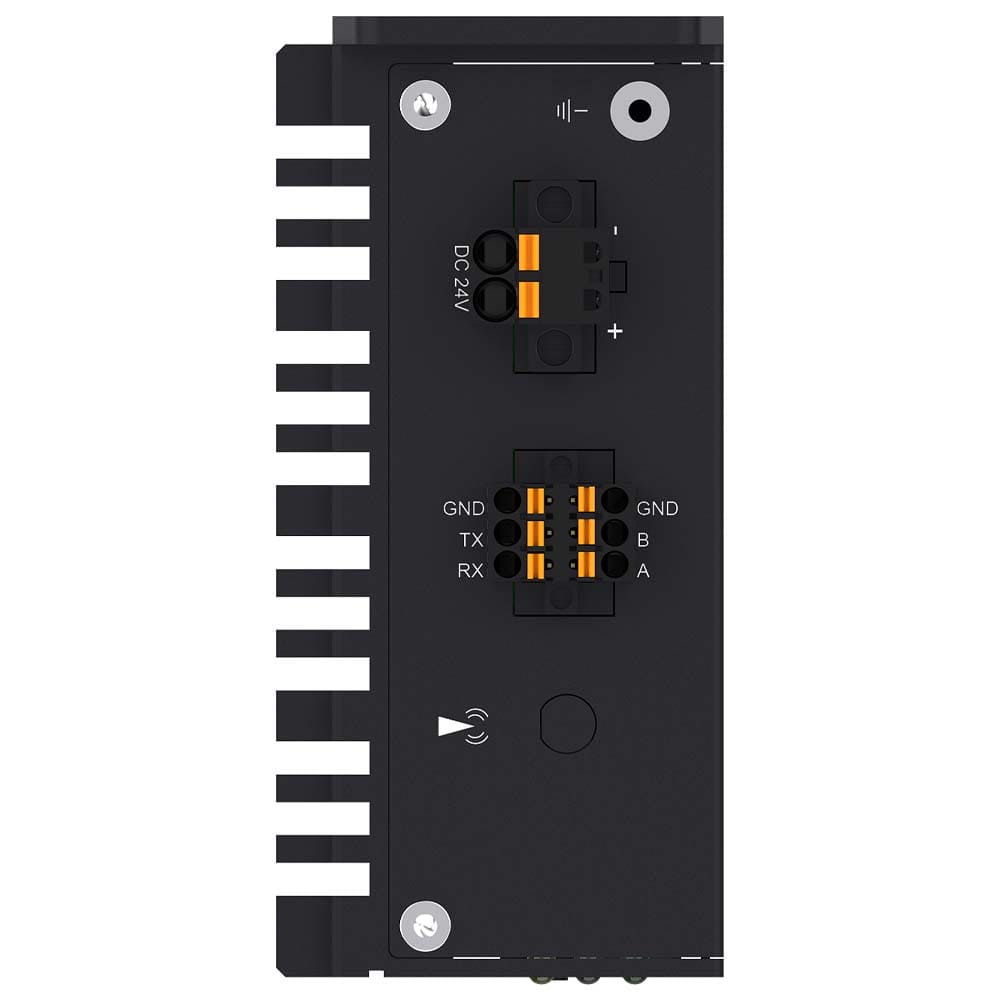

Serial Port 1x RS-232 and 1x RS-485
Display 1x HDMI (3840×2160@60Hz) and 1x DP (4096×2160@60Hz)
USB 3x USB 3.1 ports
Ethernet 3x RJ45 GbE connectors (Intel®)
Power Supply Unit
Power Input DC 12~24V input, max. 45W
Environmental
Operating Temperature -20°C~60°C (-4°F~140°F)
Storage Temperature -40°C~80°C (-40°F~176°F)
Relative Humidity 95%@40°C, non-condensing
Operation Vibration 1.5Grms/5-500Hz, IEC 60068-2-64
Operation Shock 20G, 11 msec, IEC 60068-2-27
Mechanical
Dimension 138 (W) x 102 (D) x 48 (H) mm (5.43″ x 4.02″ x 1.89″)
Weight 1.06 kg (2.33 lbs)
Mounting Wall, DIN-rail mounting

Support

(Documents & Downloads)

  Catalog   Catalog_WEBS-89I0.pdf | Catalog    December 7, 2023
507.13 KB 780 Downloads
    No downloads found!
        Driver   Driver_WEBS-89I0_ALL.zip | Driver    March 13, 2024
      1.53 GB 44 Downloads
          User’s Manual   Manual_WEBS-89I0.pdf | Manual    March 13, 2024
        671.36 KB 52 Downloads
            Software   Portwell Engineering Toolkit [PET] 4.7.12 | Software 4.7.12   March 26, 2024

          A Universal API for Hardware Access in Both Linux and Windows

          • PET-supported OS: Windows 7, Windows 10, Ubuntu 18.04, and later, and CentOS 7 and later.
          • PET API sample code test application path:
            • Windows PET_API sample code: PET_API, Windows, sample, TESTAP.cpp
            • Linux PET_Utility: PET_API, Linux, x64, release, TESTAP.c
