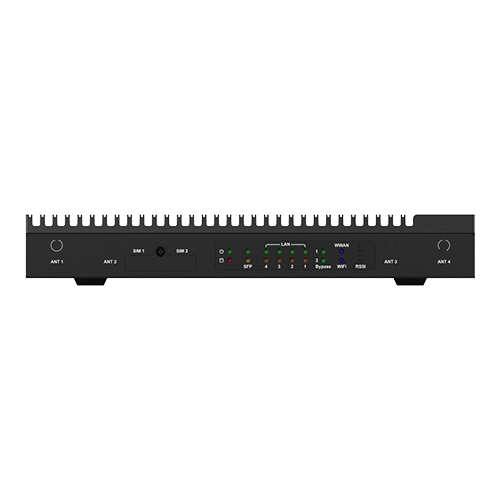

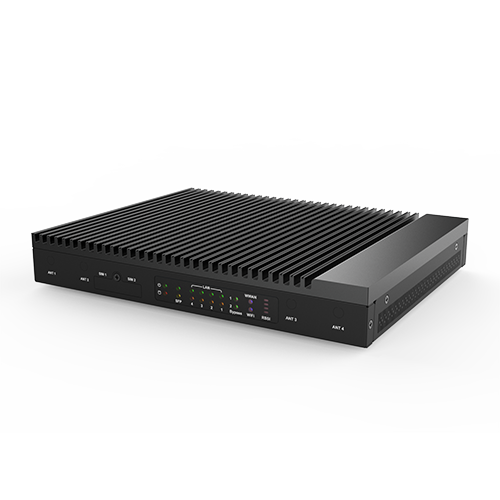

ANS-12000/12001

Compact Fan-less System with Intel® Amston Lake x7433RE(4C)/ x7835RE(8C) Processor for SD-WAN solution

Features

  • ANS-12000 series builds on Intel® Amston Lake x7433RE / x7835RE
  • Up to 8 Efficient Cores (E-cores) with Intel UHD Graphics (Xe-based, up to 32 EUs) and support Intel DL Boost (INT8), AVX2
  • 1x DDR5 4800 MT/s ECC and non-ECC SO-DIMM up to 32GB
  • 2x SIM slots
    1x M.2 Key-M 2242 slot (SATA)
    1x M.2 Key-E 2230 slot (PCIe + USB 2.0) or M.2 2242/2280 (NVME) choose one of two *1
    1x M.2 Key-B 3042/3052 slot
  • 1x TPM2.0 (On-Board)
    Design ready for 5G and WiFi 6(802.11ax)
Model ANS-12000/12001
Sys Form Factor Proprietary
General
Processor Intel® Atom® x7433RE Processor Intel® Atom® x7835RE Processor
BIOS AMI uEFI BIOS
Memory Support up to 32GB on 1 non-ECC/ECC SODIMM
Storage 1 x 2.5″ SSD/HDD 2242 Slot (SATA)
1 x eMMC 32G on board
Watchdog Timer Programmable, time out period from 1 s to 255 s
Graphic Controller Intel® UHD Graphics

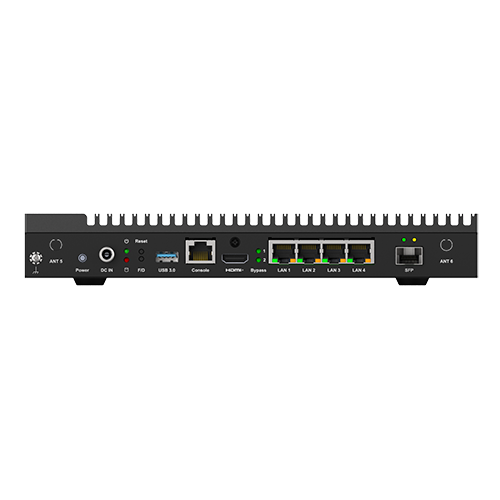

Rear I/O
Ethernet 4 x 2.5 GbE w/ Intel WGI226IT Bypass
1 x GbE w/ Intel WGI210IT Combo
USB 1 x USB 3.2 Gen1 Type A on Rear
Display 1 x HDMI® 2.0 3840 x 2160@60Hz
Other Power Button, Reset Button
Console Port 1 x RJ45
LED Bypass, ETH Status, HDD, Power, RSSI, WiFi
Antenna 6 x SMA Antenna holes for 5G / LTE / Wi-Fi
SIM Slots 2 x Micro-SIM
Expansion I/O
M.2 1 x E Key w/ 3042 USB 2.0 and PCIe x1
1 x M Key 2242/2280 PCIe Gen3 x4 or 1 x B+M Key 2230 Wi-Fi module
Security TPM 2.0
ME/Environment
Dimension (WxDxH) 200 x 255 x 36 mm (7.87″ x 10.04″ x 1.42″ )
Weight 2.25 kg
Power Supply DC Jack 12V Single
Mounting Desktop, Wall Mount
Operating Temperature -40 ~ 40 °C (-40°F ~ 104°F)
Storage Temperature -40 ~ 70 °C (-40.0 ~ 158.0 °F)
Cooling Fanless
Relative Humidity 5% to 90%, non-condensing
Certification CE, FCC Class B Part18, CE LVD Safety (EN32638-1)
Portwell Special Feature PET, NODE.X
Others
Choose one of three with M.2 Key-E 2230 slot, SFP, and M.2 Key-M 2242/2280 slot

Ordering Guide

Category Product P/N Status Description
csn_system ANS-12000 AS5-3680 Available ANS-12000. ASL x7433RE, Fan-less System. 2.5GbE RJ45*4. 1GbE SPF*1. HDMI®*1
csn_system ANS-12001 AS5-3679 Available ANS-12001 ASL x7835RE, Fan-less System. 2.5GbE RJ45*4. 1GbE SPF*1. HDMI®*1
