| SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 100 Vac~240 Vac | ||||||||
| Wattage | 250W | ||||||||
| Form Factor | Flex ATA | ||||||||
| MTBF(hrs) | 100,000 @25°C | ||||||||
| Temperature/ Humidity | Operating: 0°C ~ 50°C, 85%RH | ||||||||
| Storage: -20°C ~ 80°C, 95%RH | |||||||||
| EMC & Safety | CE, FCC, UL, TUV, CB | ||||||||
| Dimension(WxHxD) | 81.5 x 40.5 x 150 (mm) | ||||||||
| DC OUTPUT | |||||
|---|---|---|---|---|---|
| +5V | +3.3V | +12 V | -12 V | +5Vsb | |
| Max. Load | 14A | 12A | 18A | 0.3A | 2.5A |
| 80W Max | |||||
| Min. Load | 0.2A | 0A | 0.05A | 0A | 0A |
| Ripple | 50mv | 50mv | 120mv | 120mv | 50mv |
| Category | Product | P/N | Description |
|---|---|---|---|

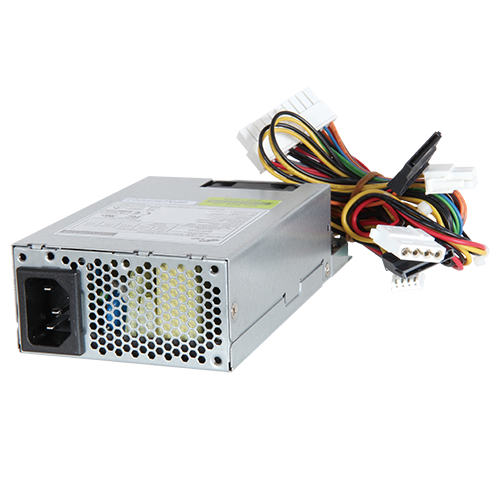

| System | APA-3079 | APA-3079 | 250W Flex ATX Power Supply |
