| SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 100 Vac~240 Vac | ||||||||
| Wattage | 400W | ||||||||
| Form Factor | 1U | ||||||||
| MTBF(hrs) | 100,000 @25°C | ||||||||
| Temperature/ Humidity | Operating: -10°C ~ 50°C, 85%RH | ||||||||
| Storage: -40°C ~ 80°C, 95%RH | |||||||||
| EMC & Safety | CE, FCC, UL, CSA, TUV, CCC | ||||||||
| Dimension(WxHxD) | 100 x 40.5 x 190 (mm) | ||||||||
| DC OUTPUT | ||||||
|---|---|---|---|---|---|---|
| +5V | +3.3V | -5V | +12 V | -12 V | +5Vsb | |
| Max. Load | 16A | 14A | 0.1A | 33A | 0.3A | 3A |
| 85W Max | ||||||
| Min. Load | 0A | 0A | 0A | 0.05A | 0A | 0A |
| Ripple | 50mv | 50mv | 100mv | 120mv | 120mv | 50mv |
| Category | Product | P/N | Description |
|---|---|---|---|

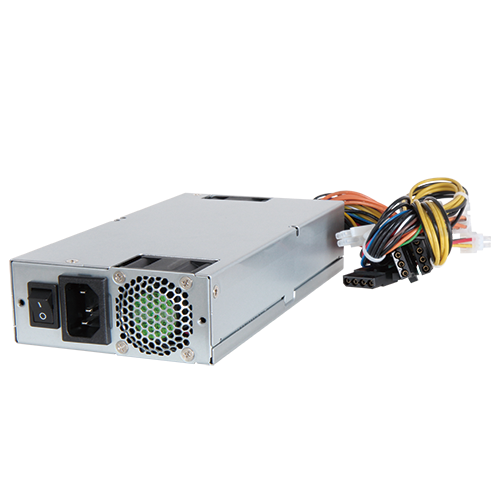

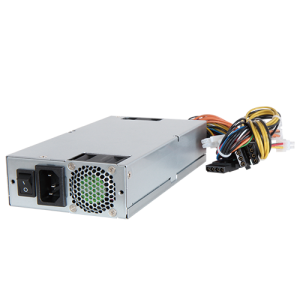

| System | APA-3083 | APA-3083 | 400W 1U ATX Power Supply |
