APD-3084

500W PS/2 ATX Power Supply

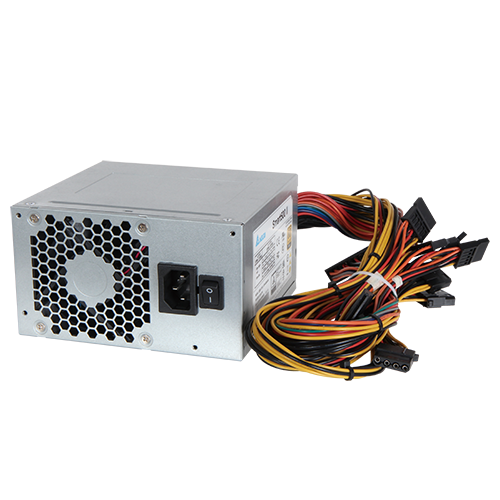

APD-3084

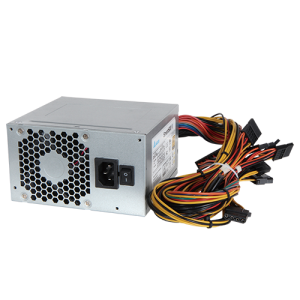

APD-3084 - Image 2

Features

Full range AC input 100-240 Vac
Low ripple & noise output
Support OVP, SCP, OCP and OTP
Safety certifications: CCC, BSMI, TUV, CE, FCC,UL, KC, CB, BIS, UKCA
80 PLUS^® Gold Certified

SPECIFICATION
Input Voltage	100 Vac~240 Vac
Wattage	500w
Form Factor	PS/2
MTBF(hrs)	100,000 @25°C
Temperature/ Humidity	Operating: 0°C ~ 50°C, 5% ~ 85%RH
Temperature/ Humidity	Storage: -40°C ~ 80°C, 5% ~ 95%RH
EMC & Safety	CCC, BSMI, TUV, CE, FCC, UL, KC, CB, BIS
Dimension(WxHxD)	150 x 86 x 140 (mm)

DC OUTPUT
	+5V	+3.3V	+12 V	-12 V	+5Vsb
Max. Load	20A	24A	41.7A	0.5A	3A
Max. Load	120W		500W Max	8W Max	15W Max
Min. Load	0.2A	0A	1A	0A	0A
Ripple	50mv	50mv	120mv	120mv	50mv

Ordering Guide

Category	Product	P/N	Description
System	APD-3084	APD-3084	500W PS/2 ATX Power Supply
