| General | |
|---|---|
| AC Input Voltage | 100V~240V |
| DC Output Voltage | 12V |
| Output Load | 7.5A |
| Output Regulation | 11.4V~12.6V |
| Efficiency | >88%, 115V@60Hz, 230V@50Hz |
| MTBF | 100,000 hrs@25°C |
| EMI & Safety Approval | UL,CUL,CB,CCC,TUV,CE,BSMI,PSE,K C&KCC,RCM,NRCAN |
| Dimension | 60(w)x150(d)x30.5(h)mm |
| Category | Product | P/N | Status | Description |
|---|---|---|---|---|

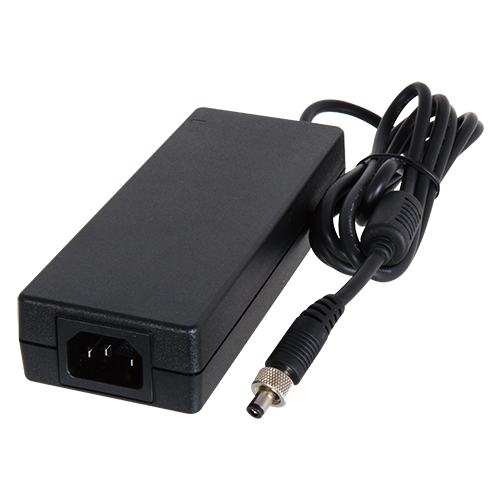

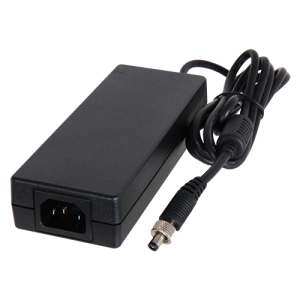

| System | APH-3071 | null | Available | AC-DC Adapter 90W/12V Screw-Lock DC Plug |
