| SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 100 Vac~240 Vac | ||||||||
| Wattage | 500w | ||||||||
| Form Factor | Flex ATA | ||||||||
| MTBF(hrs) | 700,000 @25°C | ||||||||
| Temperature/ Humidity | Operating: 0°C ~ 50°C, 8% ~ 90%RH | ||||||||
| Storage: -20°C ~ 80°C, 5% ~ 90%RH | |||||||||
| EMC & Safety | CE, FCC, UL, CSA, TUV, CCC, BSMI, KC | ||||||||
| Dimension(WxHxD) | 81.5 x 40.5 x 150 (mm) | ||||||||
| DC OUTPUT | |||||
|---|---|---|---|---|---|
| +5V | +3.3V | +12 V | -12 V | +5Vsb | |
| Max. Load | 18A | 15A | 41.6A | 0.3A | 3A |
| 150W Max | 500W Max | 3.6W Max | 15W Max | ||
| Min. Load | 0A | 0A | 0A | 0A | 0A |
| Ripple | 50mv | 50mv | 120mv | 120mv | 50mv |
| Category | Product | P/N | Description |
|---|---|---|---|

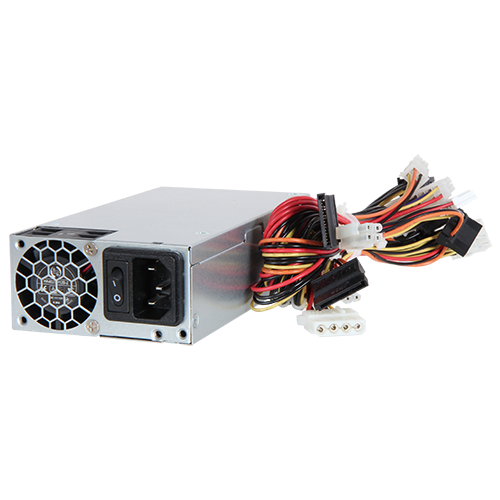

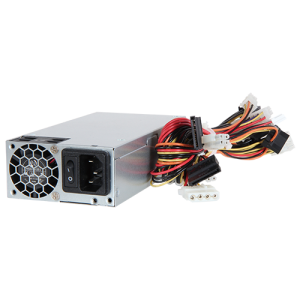

| System | APJ-3048 | APJ-3048 | 500W Flex ATX Power Supply |
