FUDA3-S1022

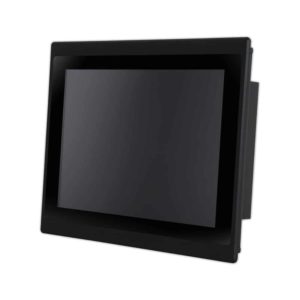

Slim and Fan-less Projective Capacitive Touch Panel PC with Wide Temperature and Panel Mount Support Powered by Intel® Apollo Lake-I Quad-core Processor

Description

In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. By enhancing performance and power efficiency, FUDA3 Series is an ideal HMI in factory automation, food and beverage industry, vending machine or semi-outdoor environments.

Model Name FUDA3-S1022
Display
LCD Size 10.4″
Resolution XGA 1024 x 768
Brightness 450 cd/m²
Contrast Ratio 3000:1
Backlight LED type
Touch Window Projective Capacitive Multi-Touch (10 points)
System
SOC Intel®  Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz)
Memory DDR3L SO-DIMM 1866 MHz up to 8 GB
BIOS AMI
Graphics Intel® HD Graphics 505
LVDS Single/ Dual Channel 24-bit
LAN Chipset Dual Intel® Gigabit Ethernet Chipset
Audio N/A
Watchdog Timer Programmable 1 ~ 255 sec
Storage Device 1 x 2.5″ SATA HDD / SSD, 1 x Mini-mSATA
OS Windows 10/ Linux™
I/O Interface
Series Port 2 x RS-232/422/485 (Expansion : Option 0)
Display 1 x HDMI®
USB 1 x USB OTG, 2 x USB 3.0
Ethernet 2 x Gigabit Ethernet
Others 1 x SMA Antenna hole for WiFi/LTE Solution
Expansion 1 x Full-size Mini-PCIe socket
1 x Half-size Mini-PCIe/Mini-mSATA socket switch by jumper
Mechanical
Dimension(mm)(WxDxH) 282 x 238 x 57.3 mm
Mounting (mm) VESA Mount 75 x 75& 100 x 100; Panel Mount
Weight (Kg)(N) 3.5 Kg
Weight (Kg)(N) 5.8 Kg
Power
Power Supply DC 12 ~ 24V input with 3-pin Terminal Block Connector
Consumption (Max) 33.5W (12V); 33.6W (24V)
Consumption (Min) 11.8W (12V); 14W (24V)
Environmental
OP /Storage Temp -25°C ~ 60°C / -40°C ~ 85°C (20 ~ 90% non-condensing)
Vibration 1.0G (SSD) and 0.5G (HDD) , Power on ; 2.16G, Packaged; 5~500Hz, IEC 60068-2-6
Shock 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
Drop Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard
IP Protection IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certificate CE/FCC Class A, UKCA, EN62368-1, EN61000-6-2
