Stylish, Slim and P-CAP Touch Monitor with Fanless Design. Suitable for Displaying Information in Various Environment.
Menu
As the entry product of LEAD series, Portwell Display or PD shares the fantastic stylish appearance and design common to Portwell products. This allows our customers to adopt the PD in the environment that needs to face end users. The full HD and ten-point multi-touch panel can provide the best user experience. The various I/O allows our customers to input information from different sources. This low-cost entry monitor will be your best choice for the occasions that don’t need any computing power.

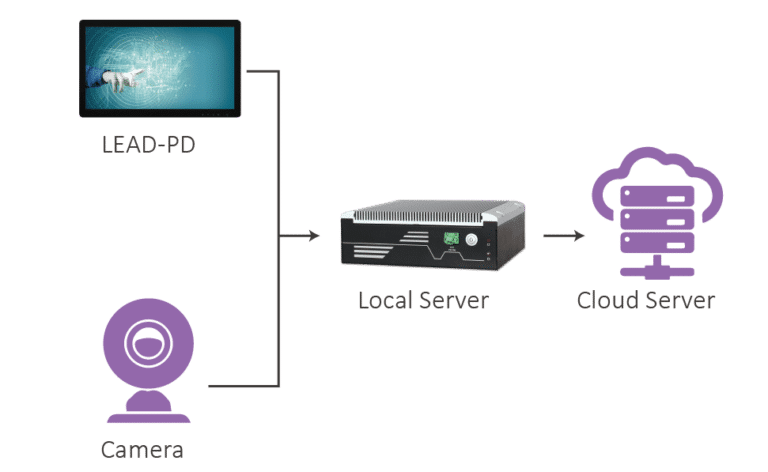

What would you expect when entering a retail shop? When you arrive at the store, the camera will catch your image and analyze your gender, age and other physical characteristics with the local server. The information will be compared with the data base. According to the result, the system would be able to provide you with customized advertisement, promotion and the location of the merchandise. Afterward, the system should lead you to the fastest check-out desk to avoid waiting. Or if you don’t want to carry all the bags, why not just tell the system to ship them back to your home? Let the friendlier and more customized shopping experience entertain your day.
| Model Name | LEAD-PD-2150 LEAD-PD-2360 |
| Part Number | AL8-3081 AL8-3082 |
| Display | |
| LCD Size | 21.5" https://p3w2n9w4.rocketcdn.me/ 23.6" |
| Resolution | FHD 1920 x 1080 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1000: 1 |
| Panel Type | TN |
| Viewing Angle | 170° (H) / 160° (V) |
| Touch Screen | Projected Capacitive Multi-Touch |
| System | |
| SOC | N/A, Monitor Only |
| Memory | |
| LAN Chip | |
| Audio Codec | |
| Storage Device | |
| OS | |
| I/O Interface | |
| Serial Port | N/A |

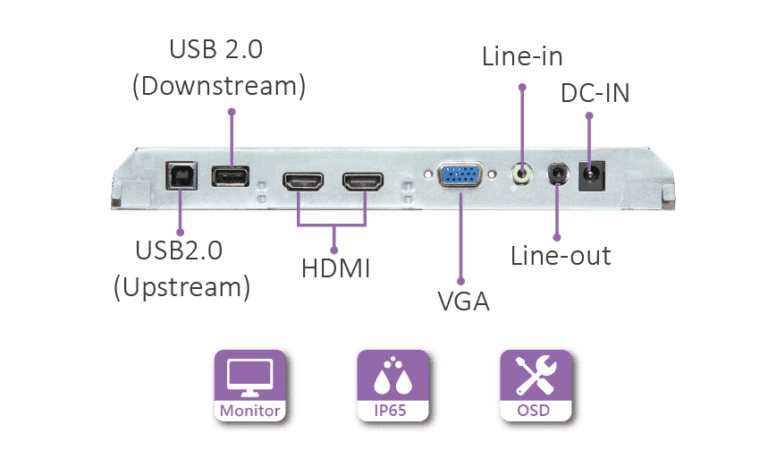

| Display | Input: 2 x HDMI®, 1 x VGA |
| USB | Upstream: 1 x USB 2.0 Type B Downstream: 1 x USB 2.0 Type A |
| Ethernet | N/A |
| Audio | 2 x 2W Speaker, 1 x Line out, 1 x Line in |
| OSD Key | Power / Menu / Right / Left / Auto |
| Power | |
| Power Input | DC 20V via DC Jack |
| Power Supply | 45W AC-DC Adapter, Power Cord |
| Environmental | |
| Mounting (mm) | Standalone: VESA® Mount 75 x 75 |
| Accessory | 1 x HDMI® cable, 1 x USB 2.0 Type B to A cable |
| OP / Storage Temperature | 0~40°C / -25~55°C |
| IP Protection | IP65 (Front) |
| Certificate | CE / FCC Class B |
